Swing Clamps GN 876

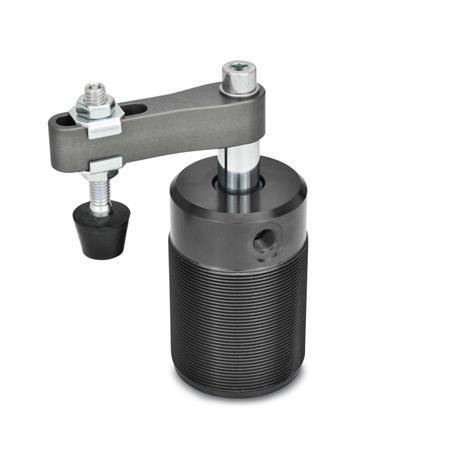

Type: AC - Clamping arm with slotted hole, with two flanged washers and GN 708.1 spindle assembly

Standard sheet GN 876 Print this page List of Pneumatic Clamps ISO Fundamental Tolerances

Product description

Swing clamps GN 876 are used when the clamping point for inserting and removing the workpiece must be freely accessible on top.

The design allows especially space-saving mounting. The height of the swing clamp can be adjusted via the screw-in thread.

During the clamping action, the arm is first swiveled by 90° and lowered, followed by the linear tensioning motion. The workpiece clamping must take place within the clamping stroke.

The angle orientation of the clamping arm can be set arbitrarily during mounting on the swing clamp. When tightening the screw, the piston rod must not experience any torque. The clamping arm must therefore be held to prevent twisting.

Specification

Aluminum
Hard anodized
Wear-resistant surface

Double-action air cylinder
Max. pressure 6 bar

Socket cap screw DIN 912
Steel, zinc plated, blue passivated

Washer ISO 7092
Steel, zinc plated, blue passivated

Spindle assembly GN 708.1, type A
- Steel, zinc plated
- Rubber tip 85 Shore A

RoHS

Accessory

Clamping Arms GN 875.2
Clamping Arms GN 875.3 (with threaded hole)
Adapter Flanges GN 875.4
Threaded Flanges GN 876.1
Clamping Screws GN 708.1 (with Rubber Pressure Pad)
Slotted Locknuts DIN 70852

A	Clamping arm with slotted hole and two flanged washers
AC	Clamping arm with slotted hole, with two flanged washers and GN 708.1 spindle assembly
B	Clamping arm with threaded hole
F	Adapter flange
N	Without clamping arm

Size Piston-Ø	d₁	F_S in N Clamping capacity at 6 bar	a	b₁	b₂	b₃	d₂	d₃ Supply port	d₄	d₅	d₆	h₁	h₂ clamped	h₃ ≈ unclamped Type A, AC	Type B	Type F

25	14	170	20	11,3	18	25	M 40 x 1,5	M 5	M 6	M 6	M 8	70	74	128	122	127
32	16	270	25	14,5	20	30	M 50 x 1,5	G 1/8	M 8	M 8	M 8	79	83	141	135	142
40	16	450	25	14,5	20	30	M 55 x 1,5	G 1/8	M 8	M 8	M 8	83	87	144	141	145
50	20	700	30	17,5	25	32	M 65 x 1,5	G 1/8	M 10	M 8	M 10	87	92	156	156	151
63	20	1100	30	17,5	25	32	M 80 x 1,5	G 1/8	M 10	M 8	M 10	92	97	162	162	157

Size Piston-Ø	d₁	k	l₁	l₂	l₃	l₄	m₁	m₂	m₃	t ≈	w₁ Clamping stroke	Stroke	w₂	max. tightening torque of the clamping arm in Nm

25	14	8,9	43	3	16	55	50	50	38	14	14	28	18	9
32	16	12,7	54	3	12	68	65	60	45	16	14	30	21	18
40	16	14,3	58	3	12	68	65	70	45	16	14	29	21	18
50	20	17,8	61	3	12	77	85	80	48	16	14	29	19	35
63	20	20,3	64	3	13	77	85	90	48	16	15	30	19	35
