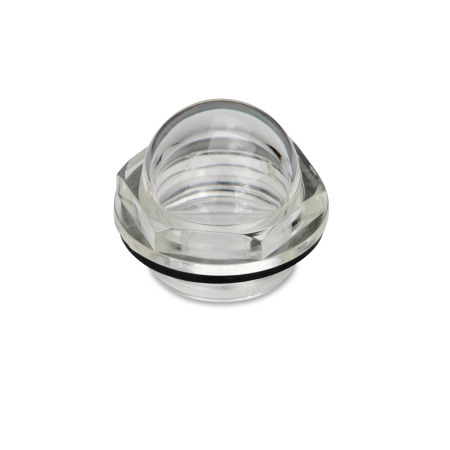

Oil Sight Glasses GN 546 (HCFE.)

d₁	d₂	d₃	l₁	l₂	s	recommended tightening torque in Nm

15	G 3/8	22,5	7,5	13	19	3 ... 5
19	G 1/2	26	10,5	16	22	4 ... 6
25	G 3/4	31,5	10,5	19,5	27	6 ... 8
31	G 1	42	11	24	36	8 ... 10
38	G 1 1/4	46,5	11,5	26,5	40,5	12 ... 15

Selected Part (How to order)

Part number

Total (net)

2,01 €

plus VAT 0,38 €
gross 2,39 €

In stock

ELESA Code: 10851

Description: HCFE.12-3/8

Weight: 0,004 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

90261089

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
