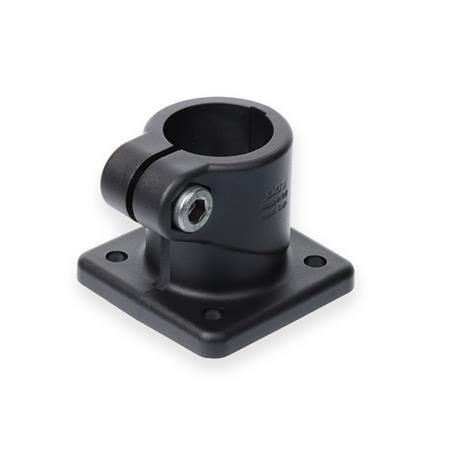

GN 163.9 Base Plate Connector Clamps Plastic

Information

The clamping bore axis of the base plate connector clamps GN 163.9 is perpendicular to the surface of the flange. It holds typical construction tubes with full surface contact over the entire cross-section of the bore.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping. Adapter bushings GN 290 can be used to reduce the bore cross-sections to a smaller diameter.

For clamping without tools, the socket cap screw can be replaced by one of the adjustable hand levers GN 911.9 listed in the table as accessories.

The plastic used in version VDB is made from blue, visually detectable and FDA-compliant plastic granulate as per FDA CFR.21 and EU 10/2011.

Specification

• Plastic
  Technopolymer (Polyamide PA)
  • Glass fiber reinforced
  • Temperature resistant up to 100 °C
  • Black, RAL 9005, matte finishSW
  • Gray, RAL 7040, matt finishGR
  • blue, RAL 5005, matte finishVDB
    FDA compliant plastic granulate
    Visually detectable

• Socket cap screw DIN 912
  Stainless steel AISI 304

• Hex nut DIN 985
  • Stainless steel AISI 304
  • Self-locking with polyamide ring

RoHS

Accessory

Adapter Bushings GN 290
Adjustable Hand Levers GN 911.9
