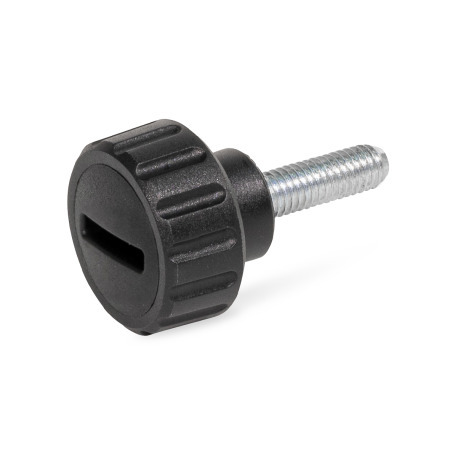

GN 592 Knurled Screws Plastic, Threaded Stud Steel

Knurled Screws GN 592: Plastic, Threaded Stud Steel
Original design BT-AV-p
Standard sheet GN 592 Print this page Plastic Characteristics

Product description

Knurled screws GN 592 are used for quick, tool-free mounting or adjusting of fixtures and devices.

If higher tightening or loosening torques are required, the slot can be used to drive the screw with a screwdriver.

Specification

Knob
Plastic, polyamide (PA)

  • Reinforced
  • Operating temperature -30 °C to +130 °C
  • Black, matte finish

Threaded stud
SteelST
Zinc plated, blue passivated

RoHS

GN 592 Knurled Screws, Plastic, Threaded Stud Steel sketch
Hide technical drawing
GN 592 Knurled Screws, Plastic, Threaded Stud Steel sketch

Article options / Table
Show / Hide columns
d1d2Length ld3hkDrive SL for
slotted screwdriver
12M 3610-9,5128SL 6,5
12M 4610-9,5128SL 6,5
12M 51016-9,5128SL 6,5
16M 3610-1113,58,5SL 6,5
16M 4610161113,58,5SL 6,5
16M 51016-1113,58,5SL 6,5
20M 5101620111610SL 10
20M 6101625111610SL 10

Build & Price
Handle diameter d1
Thread d2
Length l
Material

Specifications

Handle diameter d1
Thread d2
Length l
Material

Selected Part (How to order)

Total (net)
1,33 €
plus VAT 0,25 €
gross 1,58 €
In stock
ELESA Code: 7337
Description: BT.12 AV-p-M3x6
Weight: 0,004 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39269097
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
Create project list
Save as favourite
Recommend a product

Please enter the code you can find in the picture.

CAD data

CAD Download Tutorial

Do you find your product ?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 592-12-M3-6-STGN 592-12-M3-10-STGN 592-12-M4-6-STGN 592-12-M4-10-STGN 592-12-M5-10-STGN 592-12-M5-16-STGN 592-16-M3-6-STGN 592-16-M3-10-STGN 592-16-M4-6-STGN 592-16-M4-10-STGN 592-16-M4-16-STGN 592-16-M5-10-STGN 592-16-M5-16-STGN 592-20-M5-10-STGN 592-20-M5-16-STGN 592-20-M5-20-STGN 592-20-M6-10-STGN 592-20-M6-16-STGN 592-20-M6-25-ST
