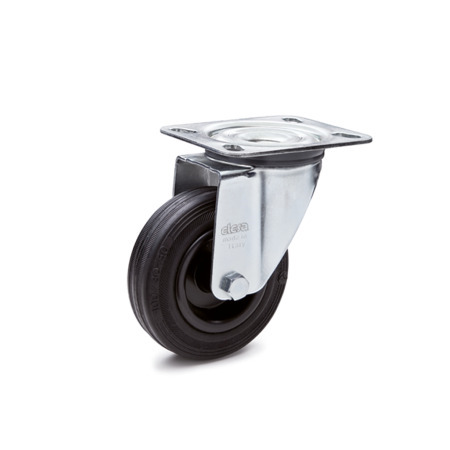

GN 22873 Medium Duty Casters Wheel Tread Rubber, Wheel Core Polypropylene, Light Version


Original design RE.E2-N.

Bearing type: G - Friction bearing
Type (bracket): L - Swivel bracket with mounting plate
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22873 Medium Duty Casters, Wheel Tread Rubber, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing
Type (bracket): B - Rigid bracket
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22873 Medium Duty Casters, Wheel Tread Rubber, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing
Type (bracket): LF - Swivel bracket with mounting plate, with total lock brake
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22873 Medium Duty Casters, Wheel Tread Rubber, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing
Type (bracket): R - Swivel bracket with center hole
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22873 Medium Duty Casters, Wheel Tread Rubber, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing
Type (bracket): RF - Swivel bracket with center hole, with total lock brake
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

Standard sheet GN 22873 Print this page General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Information

Medium duty casters GN 22873 are used in industrial and public indoor and outdoor areas for moving lightweight carts, for example.

The wheel tread is suitable for all floor types. It is gentle on floors and good at overcomingobstacles. Tread wear may occur on rough floors.

Specification

Wheel tread
Rubber

Vulcanized, black
Hardness 80 Shore A

Wheel core
Plastic, polypropylene (PP)

Bracket
Steel sheet metalST, zinc plated

Swivel head turning bracket

Dual grease-lubricated ball bearing
Dust protection ring on type L / LF
Plastic, polyethylene (PE)

Operating temperature -20 °C to +60 °C

RoHS

Technical drawing

GN 22873 Medium Duty Casters, Wheel Tread Rubber, Wheel Core Polypropylene, Light Version sketch

Hide technical drawing

Article options / Table

Bearing type

G	Friction bearing

Type (bracket)

B	Rigid bracket
L	Swivel bracket with mounting plate
LF	Swivel bracket with mounting plate, with total lock brake
R	Swivel bracket with center hole
RF	Swivel bracket with center hole, with total lock brake

Coding

L	Light version

Show / Hide columns

d₁ Wheel Ø	b	d₂	d₃	d₄	hType B / L / LF	Type R / RF	l₁	l₂ Type B	Type L / LF	l₃	m₁	m₂ Type B	Type L / LF	m₃	m₄	r	Max. dynamic load capacity in N

80	25	9	12	73	107	107	100	85	85	40	45	60	60	75	80	120	650
100	30	9	12	73	128	128	100	85	85	35	45	60	60	75	80	120	800
125	37,5	9	12	73	156	156	100	85	85	37	45	60	60	75	80	120	1100
150	40	9	12	73	182	182	100	85	85	34	45	60	60	75	80	120	1300
180	45	11	20	102	219	214	140	114	110	56	73	85	87	105	105	156	1800
200	50	11	20	102	240	236	140	114	110	56	73	85	87	105	105	156	2250

Build & Price

Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

GN 22870	x	-	-	-	-	-	x
GN 22872	x	-	x	-	-	-	-
GN 22873	x	x	x	x	x	x	x
GN 22874	x	x	x	x	x	x	x
GN 22875	x	x	x	x	x	x	x
GN 22880	x	-	x	-	-	-	x
GN 22882	x	-	x	-	-	-	-
GN 22884	x	-	x	-	-	-	x
GN 22885	x	-	x	-	-	-	-
GN 22886	x	x	x	x	x	x	x
GN 22887	x	-	x	-	-	-	-
GN 22892	x	-	x	-	-	-	-
GN 22894	x	-	x	-	-	-	-
GN 22868	x	-	x	-	-	-	-

Selected Part (How to order)

Part number

Total (net)

6,65 €

plus VAT 1,26 €
gross 7,91 €

In stock

ELESA Code: 449651

Description: RE.E2-080-PBL-N

Weight: 0,360 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83022000
