You are here: Product Overview  >  3.10 Transporting with Wheels and Casters  >  Medium Duty Casters  >  GN 22872 Medium Duty Casters next product

GN 22872 Medium Duty Casters Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version

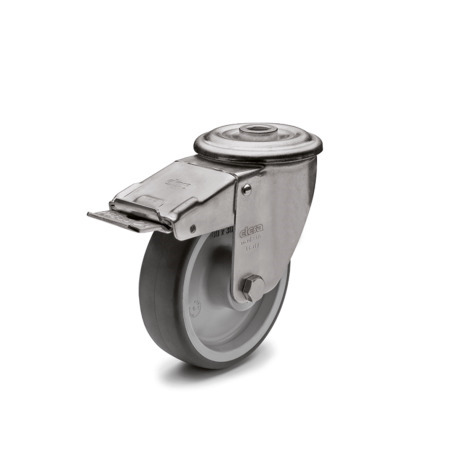

GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): RF - Swivel bracket with center hole, with total lock brake Coding: L - Light version Material (bracket): NI - Stainless steel sheet metal
Original design RE.G1-N.
Bearing type: G - Friction bearing
Type (bracket): RF - Swivel bracket with center hole, with total lock brake
Coding: L - Light version
Material (bracket): NI - Stainless steel sheet metal
GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): RF - Swivel bracket with center hole, with total lock brake Coding: L - Light version Material (bracket): NI - Stainless steel sheet metal GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): B - Rigid bracket Coding: L - Light version Material (bracket): NI - Stainless steel sheet metal GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): B - Rigid bracket Coding: L - Light version Material (bracket): ST - Steel sheet metal GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): L - Swivel bracket with mounting plate Coding: L - Light version Material (bracket): NI - Stainless steel sheet metal GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): L - Swivel bracket with mounting plate Coding: L - Light version Material (bracket): ST - Steel sheet metal GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): LF - Swivel bracket with mounting plate, with total lock brake Coding: L - Light version Material (bracket): NI - Stainless steel sheet metal GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): LF - Swivel bracket with mounting plate, with total lock brake Coding: L - Light version Material (bracket): ST - Steel sheet metal GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): R - Swivel bracket with center hole Coding: L - Light version Material (bracket): NI - Stainless steel sheet metal GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): R - Swivel bracket with center hole Coding: L - Light version Material (bracket): ST - Steel sheet metal GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version Bearing type: G - Friction bearing Type (bracket): RF - Swivel bracket with center hole, with total lock brake Coding: L - Light version Material (bracket): ST - Steel sheet metal
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 22872 Print this page Application video wheels and casters General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics Stainless Steel Characteristics

Product description

Information

Medium duty casters GN 22872 are used in industrial and public indoor areas for moving lightweight carts, for example.

The wheel tread offers low rolling resistance and high elasticity. It is characterized by quiet running, is gentle on floors and leaves no marks.

Specification

Wheel tread
Thermoplastic elastomer (TPE)

  • Gray
  • Abrasion-resistant
  • Hardness 85 Shore A

Wheel core
Plastic, polypropylene (PP)

Bracket

  • Steel sheet metalST, zinc plated
  • Stainless steel sheet metalNI AISI 304

Swivel head turning bracket

  • Dual grease-lubricated ball bearing
  • Dust protection ring on type L / LF
    Plastic, polyethylene (PE)

Operating temperature -20 °C to +70 °C

RoHS

Technical drawing

GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version sketch
Hide technical drawing
GN 22872 Medium Duty Casters, Wheel Tread Thermoplastic Elastomer, Wheel Core Polypropylene, Light Version sketch

Article options / Table

Bearing type

GFriction bearing

Type (bracket)

BRigid bracket
LSwivel bracket with mounting plate
LFSwivel bracket with mounting plate, with total lock brake
RSwivel bracket with center hole
RFSwivel bracket with center hole, with total lock brake

Coding

LLight version
Show / Hide columns
d1
Wheel ø		bd2d3d4h
Type B / L / LF
Type R / RF		l1l2
Type B
Type L / LF		l3m1m2
Type B
Type L / LF		m3m4rMax.
dynamic load capacity in N
8030912731071071008585404560607580120700
100309127312812810085853545606075801201000
125359127315615610085853745606075801201200
150*451120102194188140114110567385871051051561800
* Only available in version ST

Build & Price

Specifications

Wheel ø d1
Bearing type

Type (bracket)





Coding

Material (bracket)


Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

  • For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
  • For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.
Show / Hide columns
StandardTilesAsphaltCement-resin,
concrete		Unpaved floorGrate floorFloor with chipsFloor with obstacles
GN 22870x-----x
GN 22872x-x----
GN 22873xxxxxxx
GN 22874xxxxxxx
GN 22875xxxxxxx
GN 22880x-x---x
GN 22882x-x----
GN 22884x-x---x
GN 22885x-x----
GN 22886xxxxxxx
GN 22887x-x----
GN 22892x-x----
GN 22894x-x----
GN 22868x-x----

Selected Part (How to order)

Total (net)
7,48 €
plus VAT 1,42 €
gross 8,90 €
In stock
ELESA Code: 452651
Description: RE.G1-080-PBL-N
Weight: 0,360 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83022000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.

CAD data

At present, there is no direct download of 3D CAD data or 2D data for this part. Please send your inquiry by email directly to us. As soon as possible, we will send you the desired CAD-data.

Please add here your E-mail!


CAD Download Tutorial
Save as favourite
Recommend a product

Please enter the code you can find in the picture.

Do you find your product ?

Our service team is available from Monday to Friday between 7:00 AM and 5:30 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons

GN 22872-80-G-B-L-STGN 22872-80-G-B-L-NIGN 22872-80-G-L-L-STGN 22872-80-G-L-L-NIGN 22872-80-G-LF-L-STGN 22872-80-G-LF-L-NIGN 22872-80-G-R-L-STGN 22872-80-G-R-L-NIGN 22872-80-G-RF-L-STGN 22872-80-G-RF-L-NIGN 22872-100-G-B-L-STGN 22872-100-G-B-L-NIGN 22872-100-G-L-L-STGN 22872-100-G-L-L-NIGN 22872-100-G-LF-L-STGN 22872-100-G-LF-L-NIGN 22872-100-G-R-L-STGN 22872-100-G-R-L-NIGN 22872-100-G-RF-L-STGN 22872-100-G-RF-L-NIGN 22872-125-G-B-L-STGN 22872-125-G-B-L-NIGN 22872-125-G-L-L-STGN 22872-125-G-L-L-NIGN 22872-125-G-LF-L-STGN 22872-125-G-LF-L-NIGN 22872-125-G-R-L-STGN 22872-125-G-R-L-NIGN 22872-125-G-RF-L-STGN 22872-125-G-RF-L-NIGN 22872-150-G-B-L-STGN 22872-150-G-L-L-STGN 22872-150-G-LF-L-STGN 22872-150-G-R-L-STGN 22872-150-G-RF-L-ST
