DIN 6319 Spherical / Dished Washers

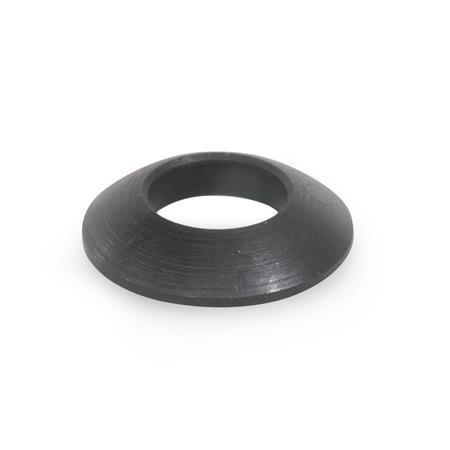

DIN 6319 Spherical / Dished Washers, Steel Type: C - Spherical seat washer
Type: C - Spherical seat washer
DIN 6319 Spherical / Dished Washers, Steel Type: C - Spherical seat washer DIN 6319 Spherical / Dished Washers, Steel Type: D - Dished washer with d<sub>3</sub> = d<sub>2</sub> DIN 6319 Spherical / Dished Washers, Steel Type: G - Dished washer with d<sub>4</sub> &gt; d<sub>2</sub>
Standard sheet DIN 6319 Print this page ISO Fundamental Tolerances

Product description

Information

Spherical washers and dished washers DIN 6319 are used for clamping on non-parallel surfaces.

The dished washers type G with enlarged outside diameter are mainly used on elongated holes.

When utilizing hexagon nuts with spherical seating DIN 6330 type B the spherical washer is redundant.

Specification

Type C / D:
Case-hardening steel
Case-hardened
All round depth 0.2 to 0.4 mm
Hardness (550 + 100) HV 10

Type G:
Heat-treated steel, tempered
Hardness (350 + 80) HV 30

RoHS

On request

Not hardened spherical washers
Not hardened dished washers

Technical drawing

3D
DIN 6319 Spherical / Dished Washers, Steel sketch
Hide technical drawing
DIN 6319 Spherical / Dished Washers, Steel sketch

Article options / Table

Type

CSpherical seat washer
DDished washer with d3 = d2
GDished washer with d4 > d2
Show / Hide columns
d1 H13
Type C
Type D / G		d2d3d4d5d6
Screw		h1h2h3h4h5 ≈h6 ≈rMax. transferable static
bolt force in kN
6,47,112121711M 60,72,32,844,25,499
8,49,617172414,5M 80,63,23,555,67,11217
10,51221213018,5M 100,844,256,57,31526
1314,224243620M 121,14,656891738
1516,528284024,8M 141,255,668,59,52253
171930304426M 161,35,36,279,610,42273
2123,236365031M 2026,37,5811,712,227117
252844446037M 242,48,29,51015,215,732168
313556566849M 303,611,2121219,219,741269
37426868-60M 364,61415-23,5-50394
43497878-70M 426,51718-29-58542
50569292-82M 4882122-35,5-67714

Build & Price

Open 3D configurator
Specifications


Bore diameter - Type C d1
Bore diameter - Type D / Type G d1
Type



Selected Part (How to order)

Total (net)
0,27 €
plus VAT 0,05 €
gross 0,32 €
In stock
Weight: 0,001 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73182200
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
