You are here: Product Overview  >  3.7 Connecting, Assembling with Clamping and Connecting Elements  >  Aluminum Profiles  >  GN 23b Automatic Connectors previous product next product

GN 23b Automatic Connectors Steel, for Aluminum Profiles (b-Modular System), Right-Angled Connection

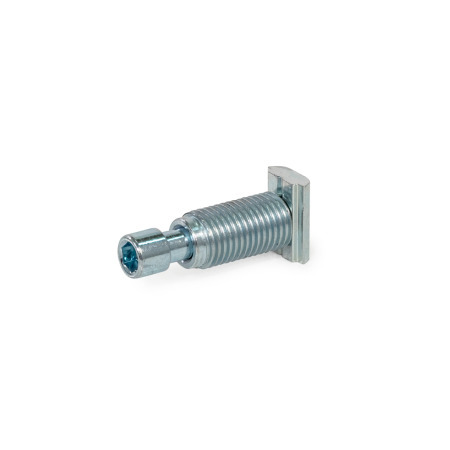

GN 23b Automatic Connectors, Steel, for Aluminum Profiles (b-Modular System), Right-Angled Connection Size: 10L
Size: 10L
GN 23b Automatic Connectors, Steel, for Aluminum Profiles (b-Modular System), Right-Angled Connection Size: 10L GN 23b Automatic Connectors, Steel, for Aluminum Profiles (b-Modular System), Right-Angled Connection Size: 10S GN 23b Automatic Connectors, Steel, for Aluminum Profiles (b-Modular System), Right-Angled Connection Size: 8S
b-modular-system

b-Modular System (Bosch compatible)

Standard sheet GN 23b Print this page Assembly video

Product description

Information

Automatic connectors GN 23b fasten aluminum profiles together at right angles. Machining of the profile is not necessary. The connection can be freely positioned and slid along the slot.

For assembly, first insert the socket cap screw along the slot and then screw in the lightly lubricated threaded bushing. Minor burr formation is possible. Automatic connectors are used in pairs opposite each other. If panels are used in the slot, they must be suitably pocketed.

Automatic connectors are supplied in bundles. The table shows the quantity included in each bundle.

Specification

  • Steel, zinc plated, blue passivatedSZ

RoHS

Technical drawing

3D
GN 23b Automatic Connectors, Steel, for Aluminum Profiles (b-Modular System), Right-Angled Connection sketch
Hide technical drawing
GN 23b Automatic Connectors, Steel, for Aluminum Profiles (b-Modular System), Right-Angled Connection sketch

Article options / Table

Profile type

LLight
SHeavy

Coding

RRight-angled connection
Show / Hide columns
n
Profile type L
Profile type S		Bundle
Pieces		d1 Self-forming thread
Profile type L
Profile type S		d2hl1l2A/F1A/F2
-84-S 11M 63,83285T40
10104S 13S 12M 83,8349,56T50

Build & Price

Open 3D configurator
Specifications

Slot width n (profile type L)
Slot width n (profile type S)
Profile type


Coding

Material/Finish

Bundle (Pieces)

Assembly Instructions

MD23b_MT-50364-0

Selected Part (How to order)

Total (net)
13,03 €
plus VAT 2,48 €
gross 15,51 €
In stock
Weight: 0,060 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181900
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
