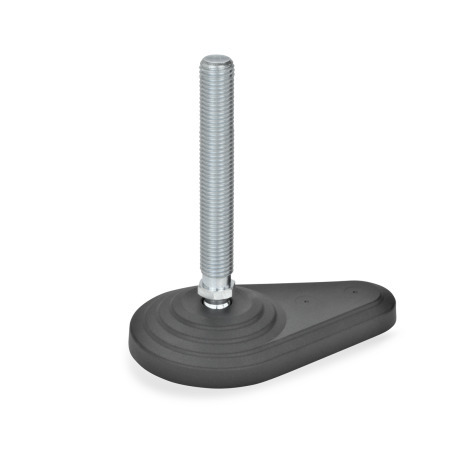

GN 445 Leveling Feet Threaded Stud Steel, Foot Plastic

Information

Leveling feet GN 445 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.

The values given in the table regarding the static load capacity serve as a guide line only and if these are exceeded serious permanent deformation or breakage of the plastic socket could occur.

The above values have been arrived at by a series of tests whereby a limited number of leveling feet were subjected for a limited time to a vertical static load to the feet.

The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

The fixing holes are closed by a thin plastic layer, which may be easily punctured.

Leveling feet GN 445 are supplied assembled, but are removable.

Specification

Foot
Plastic Technopolymer (Polyamide PA)

• Glass fiber reinforced
• Black, matte finish
• Temperature resistant up to 100 °C

Threaded stud
Steel

• Property class 5.8
• zinc plated, blue passivated

Hex nut ISO 4032
Steel zinc plated, blue passivated

Rubber underlay (NBR)
70 Shore A, black

RoHS
