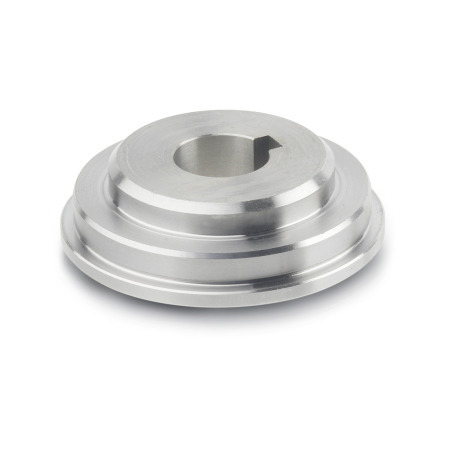

GN 268 Collar Bushings Steel, Accessories for Scaling Sets


GN 268 Collar Bushings for GN 264, steel
Standard sheet GN 268 Print this page Assembly installation example of scaling sets Keyways P9 DIN 6885-1 ISO Fundamental Tolerances

Product description

Specification

Steel
Plain

RoHS

Technical drawing

3D
GN 268 Collar Bushings for GN 264, steel sketch
Hide technical drawing
GN 268 Collar Bushings for GN 264, steel sketch

Article options / Table

Show / Hide columns
d1 f7d2 H7
Bore with keyway K		d3d4l1l2Scaling set consits of: 2 Collar bushes
1 Scale ring
3 Flat springs
24K 12---26,71813,55,5GN 264-30GN 374-0,3-10
32K 12K 14K 16-35,72513,55,5GN 264-40GN 374-0,4-10
50K 12K 16K 20K 2854,73814,55,5GN 264-60GN 374-0,6-10
68K 12K 14K 16K 2274,75014,55,5GN 264-80GN 374-0,8-10
