You are here: Product Overview > 3.7 Connecting, Assembling with Clamping and Connecting Elements > Other Connecting Elements > GN 649.1 Adapter previous product

GN 649.1 Adapter Plastic, for GN 649 to be Mounted to Round Tubes


GN 649.1 Adapter for Panel Support Clamps GN 649 to be Mounted to Round Tubes

ELESA original design
code: APC.

Standard sheet GN 649.1 Print this page Plastic Characteristics

Product description

Information

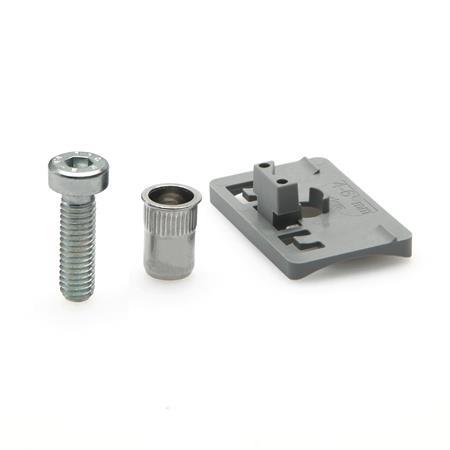

Adapter 649.1 allow panel support clamps GN 649 to be mounted to round tubes.

Mounting the M6 blind rivet nut requires a commercial blind rivet nut pliers or a setting tool.

The blind rivet nut and the flat socket cap screw DIN 7984-M6 are included parts of the order.

Specification

Plastic
Technopolymer (Polyamide PA)

Glass fiber reinforced
Gray, RAL 7042, matte finish
Temperature resistant up to 80 °C

Flat socket cap screw DIN 7984-M6
Steel
Zinc plated, blue passivated

Blind rivet nut M6
Steel
Zinc plated, blue passivated

RoHS

Technical drawing

GN 649.1 Adapter for Panel Support Clamps GN 649 to be Mounted to Round Tubes sketch

Hide technical drawing

GN 649.1 Adapter for Panel Support Clamps GN 649 to be Mounted to Round Tubes sketch

Article options / Table

Show / Hide columns

d Tube-Ø from - up to	Code No.

30-34	GN 649.1-30-34
40-43	GN 649.1-40-43
48-52	GN 649.1-48-52

Build & Price

Open 3D configurator

Diameter d

30-34

40-43

48-52

Selected Part (How to order)

Part number

Total (net)

3,06 €

plus VAT 0,58 €
gross 3,64 €

In stock

ELESA Code: 49291

Description: APC.30-34

Weight: 0,005 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

39269097

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
