GN 212 Tension Levers Steel, Blackened

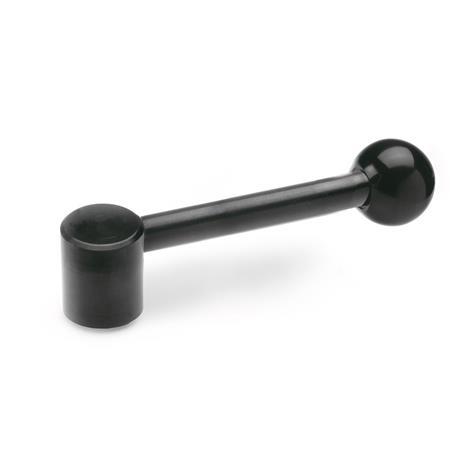

GN 212 Tension Levers, Steel Type: B - Straight lever with plain bore, Tol. H7

Type: B - Straight lever with plain bore, Tol. H7

GN 212 Tension Levers, Steel Type: B - Straight lever with plain bore, Tol. H7

GN 212 Tension Levers, Steel Type: E - Angled lever with thread

Standard sheet GN 212 Print this page Cross holes GN 110 ISO Fundamental Tolerances

Product description

Information

Tension levers GN 212 are used as clamping element as well as operating levers.

Specification

Steel
Blackened

Ball knobs DIN 319
Plastic, Duroplast
Black, shiny finish

Ball Knobs DIN 319 (Plastic, Duroplast, black, shiny finish)

RoHS

Technical drawing

GN 212 Tension Levers, Steel sketch

Hide technical drawing

GN 212 Tension Levers, Steel sketch

Article options / Table

Type

C	Angled lever with plain bore, Tol. H7
E	Angled lever with thread
B	Straight lever with plain bore, Tol. H7
D	Straight lever with thread

Show / Hide columns

d₁	d₂ Thread Type E	Type D	d₃ H7 Bore Type C	Type B	d₄	d₅	h₁	h₂ ≈ Type C Type E	Type B Type D	l₁ ≈ Type E Type C	Type B Type D	l₂ ≈	t₁ min.	t₂ min.

22	M 10	M 10	B 10	B 10	8	20	37	67	40,5	89,5	96	85	15	19
25	M 12	M 12	B 12	B 12	10	25	42	76	47	100,5	107,5	95	18	21
28	M 12	M 12	B 12	B 12	12	30	47	87	53	114	122	108	18	23
32	M 16	M 16*	B 16	B 16*	12	32	52	98	59	133	142	126	23	28
36	M 16	M 16	B 16	B 16*	14	35	58	108	64,5	146	156	138	24	28
40	M 20	M 20*	B 20	B 20	16	40	64	120	72	162,5	174	154	27	30

* not available from stock, requires a minimum order quantity

Build & Price

Open 3D configurator

GN 110 Cross holes (special order)

f8ca6d28-dd73-48fa-98c4-bb48305c7686

Show / Hide columns

d₁ H7 s H11	d₁ H7 s H11	d₂ H11	d₃	Length l Standard version	Length l Handwheels DIN 950 / GN 949 to Ø 250

6	7	2,5	M 3	4,5	-
8	9	3	M 5	5,5	4,5
10	11	3	M 5	5,5	4,5
12	13	4	M 6	6,5	5,5
14	15	4	M 6	6,5	5,5
16	17	5	M 6	8	7
18	19	5	M 6	8	7
20	21	5	M 6	8	7
22	23	6	M 6	10	9
24	25	6	M 6	10	9
26	27	6	M 6	10	9

The connection between the operating element and the shaft consists very often of a cross pin or a grub screw.
As a result the user is faced with relatively high costs since cross holes on operating elements are in general not readily available.
Components with cross holes to GN 110 are not only offered at very competitive prices but they also save the manufacturer unnecessary drawing work. The geometrical form of some of the operating elements, however, does not lend itself to modification to this particular standard.
The pin hole d₂ H11 is drilled to suit drive spring pins.

The cross hole GN 110 is to be ordered as a separate item in shopping cart step 1 under note.
How to order: Handwheel DIN 950-GG-160-B14-A with cross hole GN 110-QE

6df6d732-25ae-4db8-8ad2-f11ca730e67b

Selected Part (How to order)

Part number

Total (net)

10,36 €

plus VAT 1,97 €
gross 12,33 €

In stock

Weight: 0,118 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

73181900

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
