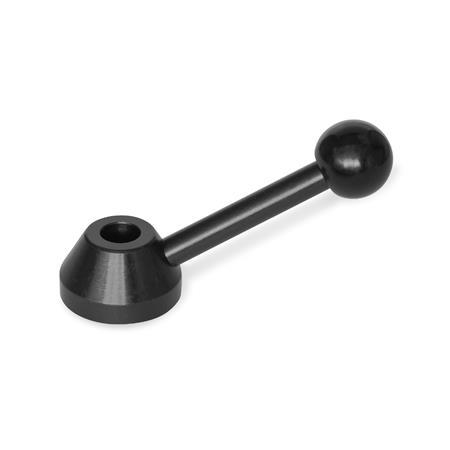

GN 223 Control Levers Steel, Blackened


GN 223 Control Levers, Steel Bore code: B - Without keyway
Bore code: B - Without keyway
GN 223 Control Levers, Steel Bore code: B - Without keyway GN 223 Control Levers, Steel Bore code: K - With keyway GN 223 Control Levers, Steel Bore code: V - With square
Standard sheet GN 223 Print this page Squares DIN 79 ISO Fundamental Tolerances Keyways P9 DIN 6885-1

Product description

Specification

Steel
Blackened

Ball Knobs DIN 319 (Plastic, Duroplast, black, shiny finish)

RoHS

Technical drawing

3D
GN 223 Control Levers, Steel sketch
Hide technical drawing
GN 223 Control Levers, Steel sketch

Article options / Table

Bore code

BWithout keyway
KWith keyway
VWith square
Show / Hide columns
d1d2
Bore H7
Square H11		d3d4h1h2h3 ≈Length l ≈
2586161453545
3210820186,54862
40121030228,57795
52161440281196136

Build & Price

Open 3D configurator
Gear lever diameter d1
Bore code



d2

Selected Part (How to order)

Total (net)
10,67 €
plus VAT 2,03 €
gross 12,70 €
In stock
Weight: 0,045 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
84879059
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
