Electromechanical Locking Systems GN 120.4

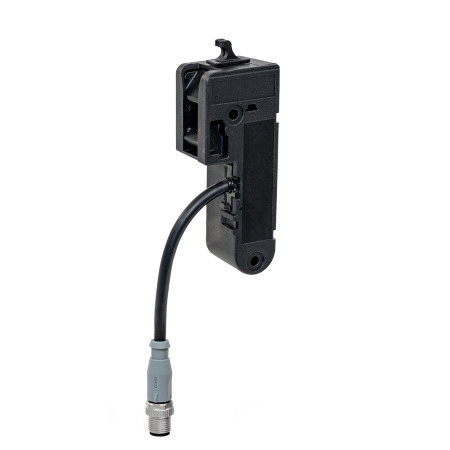

GN 120.4 Electromechanical Locking Systems, Plastic, for Latches

Standard sheet GN 120.4 Print this page Operating instruction GN 120.4 IP Protection Classes Plastic Characteristics

Product description

Electromechanical locking systems GN 120.4 are used together with latches GN 115 or GN 515. In the closed position, the latch arm is locked by the locking catch and by an electrical input signal. In addition, the presence of the latch arm in the closed position is detected and emitted as an output signal.

The locking system can be used for left or right locks and increases the latch distance A by 8 mm. Existing installations can be upgraded with minimal effort. The electromechanical locking system is also not visible from the outside.

Specification

Housing / Locking catch / Latch arm check
Plastic, polyamide (PA)

Glass fiber reinforced
Black, RAL 9005, matte

Cable
Plastic, polyurethane (PUR)
Black

Plug

Plastic, 8-pin, M12x1
Knurled screw connection
Brass, nickel plated

Operating temperature -20 °C to +60 °C

RoHS

Accessory

Cables with Connector Coupling GN 330

GN 120.4 Electromechanical Locking Systems, Plastic, for Latches sketch

Hide technical drawing

Article options / Table

Identification no.

2	With latch arm check

Connection type

A	Connector plug (with 0.25 m cable)

Width

42

Build & Price

Width

Identification no.

2 - With latch arm check

Connection type

A - Connector plug (with 0.25 m cable)

Operation description


						If the latch arm is moved to the closed position via the rotation limited to 90°, the spring-loaded locking catch snaps forward to prevent reopening of the cam latch.
						In the closed position, the presence of the latch arm is detected by the latch arm check, and a high signal is output at the latch arm check output (pin 4) if a connection is also present between the additional contact pins 5 and 6. For example, this can take the form of a simple wire bridge or a door position check.
						To release the latch again, a high signal is applied to control input pin 4, causing the locking catch to be withdrawn electromechanically. In the event of a power failure or system fault, the locking catch can be pushed back via the manual emergency release. The emergency release is designed to allow the fastening of a Bowden cable.
						When the high signal at control input pin 4 falls away, the locking catch is released by the electromechanical mechanism, allowing the spring to push it forward again into the initial position.

Technical and assembly instructions

After installation, the connection cable can be additionally secured by a cable tie at the strain relief if necessary. The electromechanical locking system GN 120.4 can be easily added to existing
installations. To accommodate the electromagnetic locking system, it is only necessary to increase the latch distance A of the latch by 8 mm. Corresponding latch arms are available for all typical latch distances.

Mechanical features


Fastening	2x through-holes for M5 screws
Recommended torque	Max. 2 Nm
Protection type	IP2x (observe cable protection!)	acc. to EN 60529
Emergency release	Fastening option for Bowden cable

Electrical features / Safety features

Supply voltage

12-24 VDC

Max. power consumption

Max. 120 mA; stand-by 9 mA

Utilization category

DC 13: 24 VDC / 120 mA

acc. to EN 60947-5-1

Contacts, connection type
Plug M12x1, 8-pin, A-coded

1 - Not used

2 - Supply voltage

3 - Release control input

4 - Latch arm check output

5 - Additional contact input

6 - Additional contact output

7 - 0 VDC / functional grounding

8 - Not used

Cable

8x0.25mm2, Li9Y11Y, jacket PUR, UL

acc. to IEC 60332-1-2

Strain relief

With cable tie

Short-circuit current

1000 A

acc. to EN 60947-5-1

Rated insulation voltage

30 VDC

Operating temperature

-20 °C ... +60 °C

Degree of pollution, external

acc. to EN 60947-5-1

Mission time (TM)

20 years

acc. to EN ISO 13849-1

Number of cycles (B10 d)

50,000

acc. to EN ISO 13849-1

Approvals, conformities, applicability

CE marking
UL Recognized

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-6
EN 61000-4-8

Information

Additional important information and instructions for using the electromechanical locking system GN 120.4 can be found in the operating instructions. These are included with the product and can also be downloaded as a PDF at www.ganternorm.com/service.
The electromechanical locking system must be installed and commissioned by a qualified specialist in accordance with the information in the operating instructions as well as the national and international provisions and applicable standards. Otto Ganter GmbH & Co. KG accepts no legal liability for missing or incorrect information or the consequences thereof.
