Proximity Switch GN 893.1

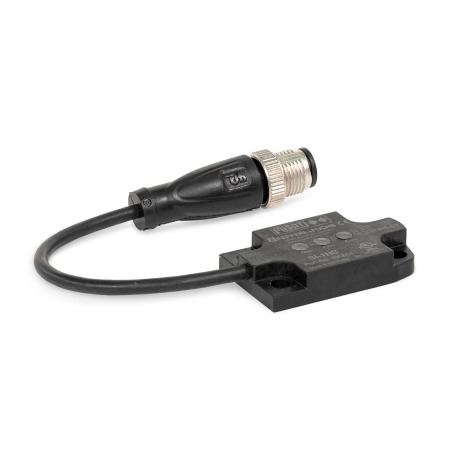

GN 893.1 Proximity Switch for Power Clamps Size 20, Inductive Sensor

Standard sheet GN 893.1 Print this page IP Protection Classes

Product description

With proximity switch GN 893.1 power clamps can induce controlled signals. They generally serve for querying the end positions. The LEDs indicate the operating and switch positions.

The proximity switch can be screwed directly on to the power clamps. The position of the switches can be on either side.

A plastic intermediate plate and two socket cap screws M4 are included.

Specification

Housing
Plastic

Socket cap screws DIN 912
Steel, blackened

Voltage range: 10 to 30 VDC

Switch load: 0 to 100 mA

Voltage drop: ≤ 2 V

Temperature range: 0° to 50 °C

Protection class: IP 65

LED-Indication:
- Green: Operating voltage
- Red: Switch position closed
- Yellow: Switch position open

RoHS

Accessory

Cables with Connector Coupling GN 330 (4-pole, 5 or 10 meters long)

Power clamps	Proximity switch type	b	d Connector 4-pole	l₁ -0,2	l₂	l₃

864-20-BL	GN 893.1	8	M 12 x 1	42	26	150 (PVC-Kabel)
865-20-BI	GN 893.1	8	M 12 x 1	42	26	150 (PVC-Kabel)
866-20-BC	GN 893.1	8	M 12 x 1	42	26	150 (PVC-Kabel)

Power clamps

Proximity
switch type

d
Connector
4-pole

l₁ -0,2

l₂

l₃

864-20-BL

GN 893.1

M 12 x 1

150 (PVC-Kabel)

865-20-BI

GN 893.1

M 12 x 1

150 (PVC-Kabel)

866-20-BC

GN 893.1

M 12 x 1

150 (PVC-Kabel)

Selected Part (How to order)

Part number

Total (net)

156,98 €

plus VAT 29,83 €
gross 186,81 €

In stock

Weight: 0,028 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

85365019
