GN 429 Cabinet U-Handles Stainless Steel, Hygienic Design

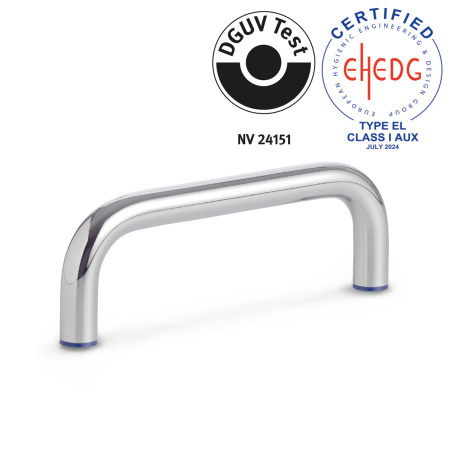

GN 429 Cabinet U-Handles, Stainless Steel, Hygienic Design Finish: PL - Polished finish (Ra < 0.8 μm) Material (Sealing ring): H - H-NBR
Finish: PL - Polished finish (Ra < 0.8 μm)
Material (Sealing ring): H - H-NBR
GN 429 Cabinet U-Handles, Stainless Steel, Hygienic Design Finish: PL - Polished finish (Ra < 0.8 μm) Material (Sealing ring): H - H-NBR GN 429 Cabinet U-Handles, Stainless Steel, Hygienic Design Finish: MT - Matte finish (Ra < 0.8 µm) Material (Sealing ring): E - EPDM GN 429 Cabinet U-Handles, Stainless Steel, Hygienic Design Finish: MT - Matte finish (Ra < 0.8 µm) Material (Sealing ring): F - FKM GN 429 Cabinet U-Handles, Stainless Steel, Hygienic Design Finish: MT - Matte finish (Ra < 0.8 µm) Material (Sealing ring): H - H-NBR GN 429 Cabinet U-Handles, Stainless Steel, Hygienic Design Finish: PL - Polished finish (Ra < 0.8 μm) Material (Sealing ring): E - EPDM GN 429 Cabinet U-Handles, Stainless Steel, Hygienic Design Finish: PL - Polished finish (Ra < 0.8 μm) Material (Sealing ring): F - FKM
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Hygienic-Design

Product Family Hygienic Design

Standard Parts of the “Hygienic Design” product family are labeled with the HD icon. They combine high surface quality, freedom from dead spaces, non-scooped outer surfaces, and sealed bolting areas. A sealing concept based on FEM calculations ensures reliable contact pressure after installation.

  • suitable for use in hygienically sensitive areas
  • quick and easy cleaning
  • no dead spaces due to functional seals
  • certified according to EHEDG guidelines
Show all Hygienic Design products
FDA

FDA compliant

Standard sheet GN 429 Print this page Product Family Hygienic Design Load Rating Information Plastic Characteristics Stainless Steel Characteristics EHEDG Certification DGUV Test Certificate Operating instruction GN 429 Information on Hygienic Design Hygienic Design brochure

Product description

Information

Cabinet U-handles GN 429 are intended for use in hygienic areas. The versions with PL finish comply additionally according to the guidelines of the EHEDG and DGUV Test guidelines.

The sealed mounting surfaces enable fastening without dead spaces. The high quality finish prevents adherence of dirt and facilitates cleaning.

Specification

Handle
Stainless steelA4 AISI 316L

  • Matte finish (Ra < 0.8 µm)MT
  • Polished finish (Ra < 0.8 μm)PL

Sealing rings

  • H-NBRH
    Operating temperature -25 °C to + 150 °C
  • EPDME
    Operating temperature -40 °C to + 120 °C
  • FKMF
    Operating temperature -5 °C to +200 °C
  • FDA compliant material
  • Blue
  • Hardness 85±5 Shore A

RoHS

Accessory

Sealing Rings GN 7600

Technical drawing

3D
GN 429 Cabinet U-Handles, Stainless Steel, Hygienic Design sketch
Hide technical drawing
GN 429 Cabinet U-Handles, Stainless Steel, Hygienic Design sketch

Article options / Table

Show / Hide columns
d1Length l ±0,5d2d3hrt
min.
12125160200M 512,8511412
16160200250M 616,8591812
20200250300M 820,8852215

Build & Price

Open 3D configurator
Material

Handle diameter d1
Length l
Finish
Material (Sealing ring)



Selected Part (How to order)

Total (net)
23,44 €
plus VAT 4,45 €
gross 27,89 €
In stock
incl. material surcharge: 1,13 €
The material surcharge is already included in the price.
Weight: 0,170 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
