GN 305 Adjustable Hand Levers Stainless Steel, DGUV certified, Hygienic Design

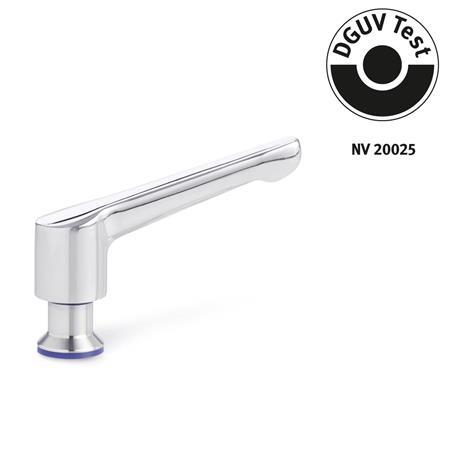

GN 305 Adjustable Hand Levers, with Bushing, Stainless Steel, Hygienic Design Material (Sealing ring): H - H-NBR
Material (Sealing ring): H - H-NBR
GN 305 Adjustable Hand Levers, with Bushing, Stainless Steel, Hygienic Design Material (Sealing ring): H - H-NBR GN 305 Adjustable Hand Levers, with Bushing, Stainless Steel, Hygienic Design Material (Sealing ring): E - EPDM
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Hygienic-Design

Product Family Hygienic Design

Standard Parts of the “Hygienic Design” product family are labeled with the HD icon. They combine high surface quality, freedom from dead spaces, non-scooped outer surfaces, and sealed bolting areas. A sealing concept based on FEM calculations ensures reliable contact pressure after installation.

  • suitable for use in hygienically sensitive areas
  • quick and easy cleaning
  • no dead spaces due to functional seals
  • certified according to EHEDG guidelines
Show all Hygienic Design products
FDA

FDA compliant

Standard sheet GN 305 Print this page Operating instruction GN 305 Plastic Characteristics Stainless Steel Characteristics DGUV Test Certificate Information on Hygienic Design Hygienic Design brochure

Product description

Information

Adjustable hand levers GN 305 with solid stainless steel handle comply with the DGUV testing principles, making them suitable for use in hygienic areas.

The sealed mounting surface enables fastening without dead spaces. The high quality finish as well as the impervious exterior surfaces prevent adherence of dirt and facilitate cleaning.

Adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position.

The threaded insert is moveably attached to the handle with serrations. When pulling the handle, the serration frees itself and can be re-located into any required position. Engagement is achieved by releasing the lever.

Specification

Handle
Stainless steel
precision casting AISI 316
Polished finish (Ra < 0.8 μm)PL

Threaded bushing
Stainless steel AISI 304

Sealing ring / Wiper

  • H-NBRH
    Temperature resistant -25 °C to + 150 °C
  • EPDME
    Temperature resistant -40 °C to + 120 °C
  • Blue
  • Hardness 85±5 Shore A
  • FDA compliant

RoHS

Accessory

Sealing Rings GN 7600

Technical drawing

3D
GN 305 Adjustable Hand Levers, with Bushing, Stainless Steel, Hygienic Design sketch
Hide technical drawing
GN 305 Adjustable Hand Levers, with Bushing, Stainless Steel, Hygienic Design sketch

Article options / Table

Show / Hide columns
l1d1d2d3d4h1h2h3h4
Stroke		t
min.
63M 61414,81943,816,360,12,510
63M 81818,81945,818,362,12,512
78M 81818,82449,316,569,3312
78M 102222,82451,318,571,3315

Build & Price

Open 3D configurator
Specifications

Handle length l1
Connection thread d1
Finish
Material (Sealing ring)


Selected Part (How to order)

Total (net)
40,41 €
plus VAT 7,68 €
gross 48,09 €
In stock
Weight: 0,034 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
84879059
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
