You are here: Product Overview  >  2.2 Tensioning, Clamping with Knobs  >  Hand Knobs  >  GN 6335.5 Hand Knobs previous product next product

GN 6335.5 Hand Knobs Aluminum, Threaded Stud Stainless Steel

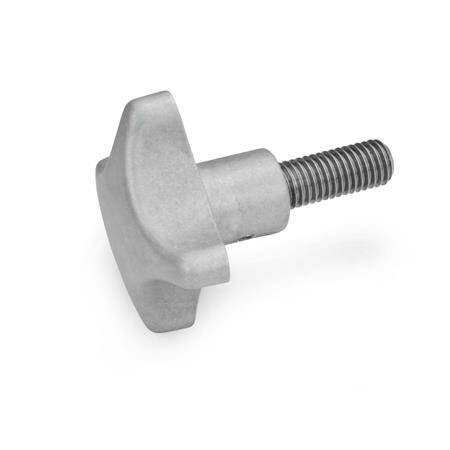

GN 6335.5 Hand Knobs, Aluminum, Threaded Stud Stainless Steel Finish: AM - Matte finish (tumbled)
Finish: AM - Matte finish (tumbled)
GN 6335.5 Hand Knobs, Aluminum, Threaded Stud Stainless Steel Finish: AM - Matte finish (tumbled) GN 6335.5 Hand Knobs, Aluminum, Threaded Stud Stainless Steel Finish: AP - Polished
Standard sheet GN 6335.5 Print this page Stainless Steel Characteristics

Product description

Specification

Knob
Aluminum

  • Forged
  • Matte finish (tumbled)AM
  • PolishedAP

Threaded stud
Stainless steel AISI 303

The threaded stud is screwed in and secured by a cross-dowel

RoHS

Technical drawing

3D
GN 6335.5 Hand Knobs, Aluminum, Threaded Stud Stainless Steel sketch
Hide technical drawing
GN 6335.5 Hand Knobs, Aluminum, Threaded Stud Stainless Steel sketch

Article options / Table

Show / Hide columns
d1d2Length ld3h1h2
40M 820253040-142513
50M 102025304555183218
63M 12304050--204023

Build & Price

Open 3D configurator
Specifications




Finish
Handle diameter d1
Thread
Length l

Selected Part (How to order)

Total (net)
8,96 €
plus VAT 1,70 €
gross 10,66 €
In stock
Weight: 0,034 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181535
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
