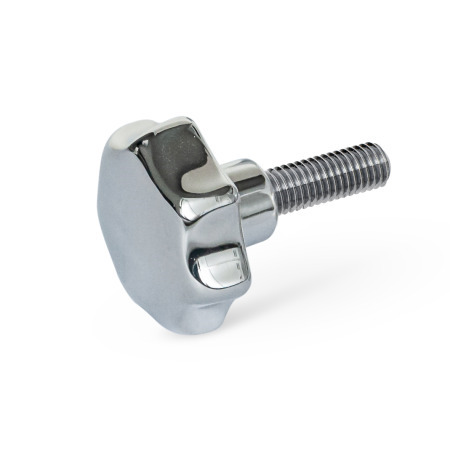

GN 6336.5 Star Knobs Stainless Steel


GN 6336.5 Star Knobs, Stainless Steel AISI 316
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 6336.5 Print this page Stainless Steel Characteristics

Product description

Information

Star knobs GN 6336.5 satisfy the dimensions of the DIN 6336 type L but differ in terms of their non-scooping geometry, which makes cleaning easier and helps prevent possible build-up of dirt.

They are suitable for areas with special hygiene requirements and, thanks to the material used, for applications in highly corrosive environments.

Specification

Knob
Stainless steel precision castingA4P AISI 316
Polished

Threaded stud
Stainless steel

The threaded stud is screwed in and secured by a cross-dowel (stainless steel).

RoHS

Technical drawing

3D
GN 6336.5 Star Knobs, Stainless Steel AISI 316 sketch
Hide technical drawing
GN 6336.5 Star Knobs, Stainless Steel AISI 316 sketch

Article options / Table

Show / Hide columns
d1d2Length ld3h1h2
40M 820253040-142512
50M 102025304555183215
63M 12304050--204019

Build & Price

Open 3D configurator
Specifications




Material

Handle diameter d1
Thread d2
Length l

Selected Part (How to order)

Total (net)
18,42 €
plus VAT 3,50 €
gross 21,92 €
In stock
Weight: 0,117 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181535
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
