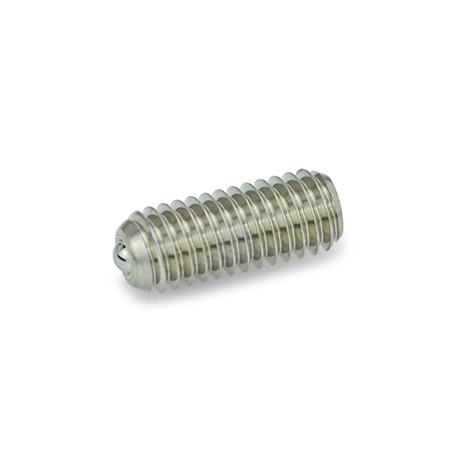

GN 615.9 Stainless Steel Spring Plungers Ball with Friction Bearing, with Internal Hex

GN 615.9 Stainless Steel Spring Plungers, Ball with Friction Bearing, with Internal Hex Type: KN - Stainless steel, standard spring load
Type: KN - Stainless steel, standard spring load

Click on a variant image to view it in the main product display area or use tab keys to navigate through product variants

Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 615.9 Print this page Application video spring plungers Stainless Steel Characteristics

Product description

Stainless steel spring plungers GN 615.9 are used for locking as well as for pressure and hold-off functions.

The ball is mounted in a plastic shell so as to be freely movable, which enables rolling and therefor generally optimizes the locking characteristics. Above all, this reduces wear on the counter piece.

A further characteristic of these plungers is that the plastic bearing acts as an electrical insulator.

Specification

Housing
Stainless steel AISI 303

Ball
Stainless steel AISI 420C, hardened

Pressure spring
Stainless steel AISI 631

Friction bearing

  • Plastic
  • Temperature resistant up to 90 °C

Identification of type KSN:
Housing with 2 longitudinal markings

RoHS

GN 615.9 Stainless Steel Spring Plungers, Ball with Friction Bearing, with Internal Hex sketch
Hide technical drawing
GN 615.9 Stainless Steel Spring Plungers, Ball with Friction Bearing, with Internal Hex sketch

Article options / Table

Type

KNStainless steel, standard spring load
KSNStainless steel, high spring load
Show / Hide columns
d1d2Length lw
Compression		A/FSpring load in N ≈
standard (Type KN)
initial

end
high (Type KSN)
initial
end
M 52140,52.54,86,81014
M 62,5150,736,3101116
M 83,5180,95416242340
M 104,5231,4518,831,72854,3
M 126,5262,36264939,577,3
M 168,5333,1838685088,7

Build & Price
Thread d1
Type


Specifications

Thread d1
Type


Selected Part (How to order)

Total (net)
6,10 €
plus VAT 1,16 €
gross 7,26 €
In stock
Weight: 0,001 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181900
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
