Hinges GN 235

l₁ D, DH, H	DB, HB	B	l₂	b	d₁	d₂	h₁	h₂	h₃	h₄	l₃ D, DH, H	DB, HB, B	l₄ D, DH, H, DB, HB	B	m₁	m₂

40	45	50	45	5,3	5,3	4	13	5	9,5	19	16	21	16	21	25	25
50	55	60	55	6,5	6,5	6	16,6	6	11,6	23,2	21	26	21	26	30	30
60	68	76	65	8,3	8,3	8	21,4	8	14,9	29,8	26	33,5	26	33,5	36	36

Selected Part (How to order)

Part number

Total (net)

12,28 €

plus VAT 2,33 €
gross 14,61 €

In stock

incl. material surcharge: 0,33 €

The material surcharge is already included in the price.

Weight: 0,088 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83021000

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.

CAD data

Other data formats

About CAD-Downloads

Save as favourite

H	Vertically adjustable
B	Horizontally adjustable
HB	Vertically and horizontally adjustable
D	With through-holes
DH	With through-holes, vertically adjustable
DB	With through-holes, horizontally adjustable

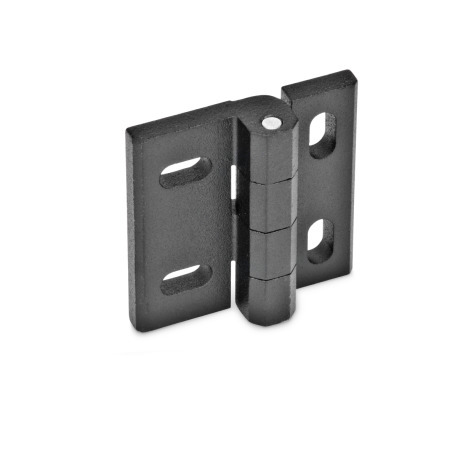

GN 235 Hinges Stainless Steel, Adjustable
