Identification: VH - Knob and pin side Hygienic Design (full hygiene)
Product description

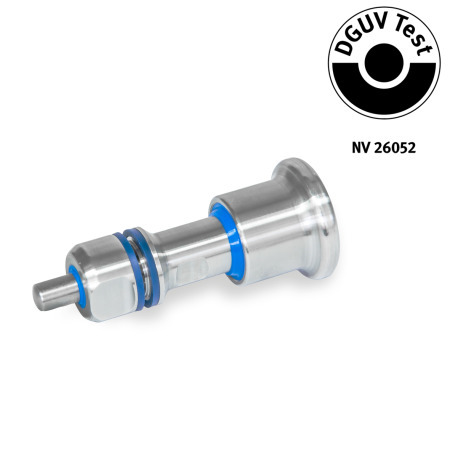

Indexing plungers GN 8170 are certified according to DGUV Test guidelines, and with the additional sealing nut, they meet hygiene requirements on the knob and pin sides (full hygiene).
Wipers between knob and guide and between guide and pin as well as sealing rings on the guide and sealing nut keep the locking mechanism leak-tight. At the same time, the high surface quality (Ra < 0,8 µm) and dead-space-free mounting prevent dirt from adhering and facilitate cleaning.
Indexing plungers with a rest position (Type C) are used for such applications where the plunger has to stay in its retracted position. In that case, the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.
Through-holes in the housing must be at a right angle, free of burrs and without a chamfer. This ensures that the sealing rings will function properly.
Specification
Guide / Plunger pin / Knob / Nut
Stainless steel AISI 316
Plunger pin surface hardened
Pressure spring
Stainless steel AISI 316Ti
Seals
- Blue
- FDA compliant material
- Operating temperature -25 °C to +110 °C
- Sealing ring
HNBR , hardness 85 ±5 Shore AH - Wiper
TPU, hardness 95 ±5 Shore A
All moving parts
Lubricated, grease FDA-compliant (NSF H1)
RoHS
