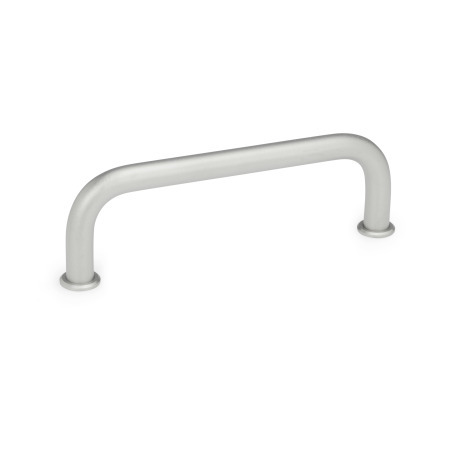

GN 425 Cabinet U-Handles Stainless Steel

GN 425 Cabinet U-Handles, Stainless Steel Material: NI - Stainless steel Finish: GS - Matte shot-blasted finish
Material: NI - Stainless steel
Finish: GS - Matte shot-blasted finish
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 425 Print this page Load Rating Information Stainless Steel Characteristics

Product description

Cabinet U-handles GN 425 are manufactured from a bent stainless steel profile. Cabinet U-handles with Ø d1 = 6, 8 and 10 are delivered with two location disks to ensure proper contact of the handle even in the case of large connecting holes. The disks are loosely enclosed.

The stainless steel version is preferred over the chrome-plated version in steel for outdoor applications.

Specification

Stainless steelNI
AISI 303 for d1 = 6, 8, 10
AISI 304 for d1 = 12, 16

  • Matte shot-blasted finishGS
  • ElectropolishedEP
  • Location disks for d1 = 6, 8, 10
    Stainless steel AISI 303

Stainless steelA4 AISI 316L

  • Matte shot-blasted finishGS
  • Location disks
    Stainless steel AISI 316L

RoHS

Accessory

Fastening Sets GN 181 (Mounting from the Operator‘s Side)

On request

Stainless steel version A4 electroplished

GN 425 Cabinet U-Handles, Stainless Steel sketch
Hide technical drawing
GN 425 Cabinet U-Handles, Stainless Steel sketch

Article options / Table
Show / Hide columns
d1
NI
A4		Length ld2d3hrt
min.
6-324555*6488*--M 392676
8-55*6488*96100120*128M 41235108
101088*100120*180*200235*-M 515431212
12-125160200250---M 6-511412
16-160200250300---M 6-591812
* suitable for 19“ rack and enclosure layout

Build & Price
Material


Handle diameter d1 (NI)
Handle diameter d1 (A4)
Length l
Finish
Specifications


Material


Handle diameter d1 (NI)
Handle diameter d1 (A4)
Length l
Finish

Selected Part (How to order)

Total (net)
4,61 €
plus VAT 0,88 €
gross 5,49 €
In stock
incl. material surcharge: 0,05 €
The material surcharge is already included in the price.
Weight: 0,016 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83024900
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
