GN 5337.2 Star Knobs Bushing Brass

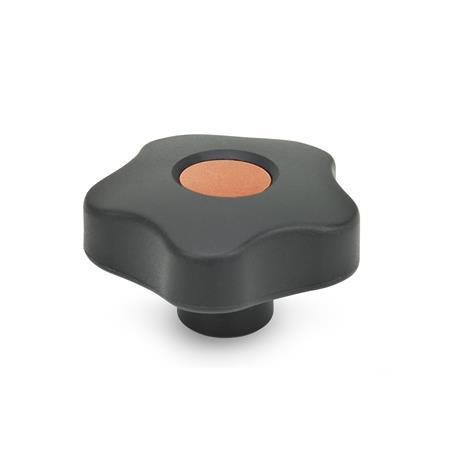

GN 5337.2 Star Knobs with Colored Cover Caps, Plastic, Bushing Brass Type: E - With cover cap (threaded blind bore) Color of the cover cap: DOR - Orange, RAL 2004, matte finish
Original design
code VCT.
Type: E - With cover cap (threaded blind bore)
Color of the cover cap: DOR - Orange, RAL 2004, matte finish
GN 5337.2 Star Knobs with Colored Cover Caps, Plastic, Bushing Brass Type: E - With cover cap (threaded blind bore) Color of the cover cap: DOR - Orange, RAL 2004, matte finish GN 5337.2 Star Knobs with Colored Cover Caps, Plastic, Bushing Brass Type: E - With cover cap (threaded blind bore) Color of the cover cap: DBL - Blue, RAL 5024, matte finish GN 5337.2 Star Knobs with Colored Cover Caps, Plastic, Bushing Brass Type: E - With cover cap (threaded blind bore) Color of the cover cap: DGB - Yellow, RAL 1021, matte finish GN 5337.2 Star Knobs with Colored Cover Caps, Plastic, Bushing Brass Type: E - With cover cap (threaded blind bore) Color of the cover cap: DGN - Green, RAL 6017, matte finish GN 5337.2 Star Knobs with Colored Cover Caps, Plastic, Bushing Brass Type: E - With cover cap (threaded blind bore) Color of the cover cap: DGR - Gray, RAL 7035, matte finish GN 5337.2 Star Knobs with Colored Cover Caps, Plastic, Bushing Brass Type: E - With cover cap (threaded blind bore) Color of the cover cap: DRT - Red, RAL 3000, matte finish
Standard sheet GN 5337.2 Print this page Plastic Characteristics Loss protections GN 111.7 ISO Fundamental Tolerances

Product description

Information

Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.

Specification

  • Plastic
    Technoplymer (Polypropylen PP)
    • Reinforced, shock resistant
    • Temperature resistant up to 90 °C
    • Black, matte finish
  • Bushing brass
  • Color of the cover cap:
    Orange, RAL 2004, matte finishDORDOR
    Gray, RAL 7035, matte finishDGRDGR
    Yellow, RAL 1021, matte finishDGBDGB
    Blue, RAL 5024, matte finishDBLDBL
    Red, RAL 3000, matte finishDRTDRT
    Green, RAL 6017, matte finishDGNDGN

RoHS

Technical drawing

3D
GN 5337.2 Star Knobs with Colored Cover Caps, Plastic, Bushing Brass sketch
Hide technical drawing
GN 5337.2 Star Knobs with Colored Cover Caps, Plastic, Bushing Brass sketch

Article options / Table

Type

EWith cover cap (threaded blind bore)
Show / Hide columns
d1d2
Type E		d5d6h1h2t1
32M 5M 6M 81510231012
40M 6M 8-1713271218
40M 10--1713271217
50M 8M 10M 121915321420
63M 8M 10M 122219371626
74M 12M 14-261743,52226
74M 16--261743,52231
84M 12M 16-2822442125

Build & Price

Open 3D configurator
Specifications



Handle diameter d1
Thread d2 (Type E)
Type

Color of the cover cap
DBL
DGB
DGN
DGR
DOR
DRT

Selected Part (How to order)

Total (net)
1,52 €
plus VAT 0,29 €
gross 1,81 €
In stock
Weight: 0,013 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
39263000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
