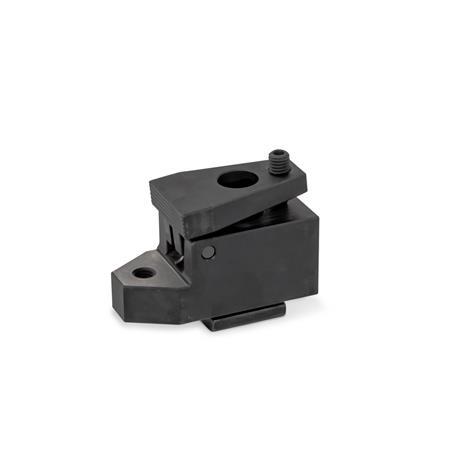

GN 9190.2 Side Clamps Steel, with Clamping Thread and Support


GN 9190.2 Side Clamps, Steel, with Clamping Thread and Support Type: E - With serrated clamping jaw Coding: G - Clamping stroke with ball point screw
Type: E - With serrated clamping jaw
Coding: G - Clamping stroke with ball point screw
GN 9190.2 Side Clamps, Steel, with Clamping Thread and Support Type: E - With serrated clamping jaw Coding: G - Clamping stroke with ball point screw GN 9190.2 Side Clamps, Steel, with Clamping Thread and Support Type: E - With serrated clamping jaw Coding: K - Clamping stroke with adjustable hand lever GN 9190.2 Side Clamps, Steel, with Clamping Thread and Support Type: P - With prism clamping jaw Coding: G - Clamping stroke with ball point screw GN 9190.2 Side Clamps, Steel, with Clamping Thread and Support Type: P - With prism clamping jaw Coding: K - Clamping stroke with adjustable hand lever
Standard sheet GN 9190.2 Print this page Strength Values of Nuts Strength Values of Screws

Product description

Information

With side clamps GN 9190.2, workpieces are clamped with a pivoted clamping jaw. The clamping force acts laterally and from above to pull down on the workpiece and clamp it against fixed stops and the supporting surface. The thread integrated in the support accommodates any positioning or support elements as required.

The clamping stroke of the clamping jaw results from the screw-in depth of the clamping thread d4. When the clamping screw is released, the clamping jaw is returned by spring force. The low overall height of the side clamps allows full-surface machining of the workpiece.

Side clamps can be screwed in directly, e.g. in a mounting plate, or fastened to machine tables with T-slots. In addition, they can be mounted in any position perpendicular to the T-slot using the slotted support blocks GN 9190.3, which are available as accessory.

Specification

Clamping mechanisms
Steel

  • Case-hardened
  • Blackened

Nut for T-slot

  • Steel, blackened
  • Property class 10

Socket cap screw DIN 912

  • Steel, blackened
  • Property class 12.9

Ball point screw (coding G)

  • Steel, blackened
  • Ball hardened

Adjustable hand lever (coding K)

  • Zinc die casting
    Powder coated
    Black RAL 9005, textured finish
  • Threaded insert
    Steel, blackened
    Ball hardened

RoHS

Technical drawing

3D
GN 9190.2 Side Clamps, Steel, with Clamping Thread and Support sketch
Hide technical drawing
GN 9190.2 Side Clamps, Steel, with Clamping Thread and Support sketch

Article options / Table

Type

EWith serrated clamping jaw
PWith prism clamping jaw

Coding

GClamping stroke with ball point screw
KClamping stroke with adjustable hand lever
Show / Hide columns
a
Slot width		d1FS in kN
Max. clamping force		b1b2d2d3d4d5
Min.
Max.		h1h2
10M 873212,18,4M 8M 84264440
14M 1215481613M 12M 124265345
18M 1621,56818,817M 16M 164267260
Show / Hide columns
a
Slot width		h3h4 ±0,01l1l2l3l4l5l6s
Clamping stroke		Max. tightening torque
MA in Nm
10281552283072,5386333
142715724044100557849
18382086415612663108720
