Identification no.: 1 - With proximity sensor
Product description

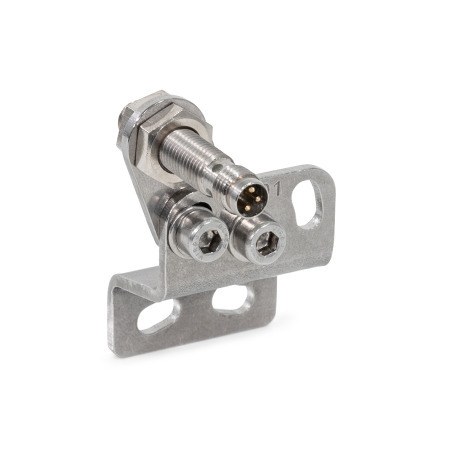

Sensor holders GN 801.4 are designed as accessories for GN 810 and GN 820 series toggle clamps and enable contactless monitoring of the clamping positions using an inductive sensor.
When the clamping lever is in clamping position, the sensor electronics provide a high signal, e.g. to a machine control unit, and additionally indicate this switch status with an LED on the sensor.
Operating errors can thus be reliably detected and process reliability increased.
The sensor holder can be retrofitted to toggle clamps and mounted on the right or left, depending on the installation situation of the toggle clamp. All parts are supplied unmounted as a set. The proximity sensor is not included in the scope of delivery of identification no. 2.
Specification
Retaining bracket / Retaining plate
Stainless steel AISI 304
Setting nuts
Stainless steel AISI 304
Socket cap screws / Washers / Nuts
Stainless steel
Proximity sensor at identification no. 1
- Housing, stainless steel AISI 304
- Inductive, 3-pole, PNP contact
- Thread M8 x 1
- Operating temperature -25 °C to +80 °C
RoHS
Accessory
Cables with Connector Coupling GN 330 (3-pole, 2 or 5 meters long)
