GN 417 Indexing Plungers Stainless Steel, with Lifting Ring / with Wire Loop, without Rest Position

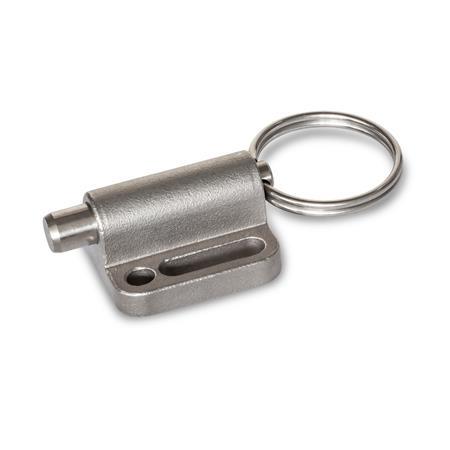

GN 417 Indexing Plungers, Stainless Steel, with Lifting Ring / with Wire Loop, without Rest Position Type: A - With pull ring Material: NI - Stainless steel precision casting
Type: A - With pull ring
Material: NI - Stainless steel precision casting
GN 417 Indexing Plungers, Stainless Steel, with Lifting Ring / with Wire Loop, without Rest Position Type: A - With pull ring Material: NI - Stainless steel precision casting GN 417 Indexing Plungers, Stainless Steel, with Lifting Ring / with Wire Loop, without Rest Position Type: D - With wire loop Material: NI - Stainless steel precision casting
Accessories-for-profile-systems

Accessories for profile systems

Standard Parts in this product family are compatible with the most common aluminium profile systems. Using matching assembly sets, the Ganter standard elements are easily and cost-effectively connected with the profiles without the time-consuming compiling of individual parts in the order.

  • compatible with the common profile systems
  • for groove widths of 6, 8 and 10 mm
  • for profiles 30, 40 and 45 mm
Show all compatible products
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 417 Print this page List of Indexing Plunger Types Stainless Steel Characteristics Load Rating Information ISO Fundamental Tolerances

Product description

Information

Indexing plungers GN 417 with flange are mounted parallel to the plungers and are characterized by an especially low height. The mounting hole pattern with slots offers generous adjustment options, such as for the use of aluminum sections. The use of washers makes it easier to mount the parts using the slots.

Type D has a reinforced wire loop, making it especially suited for remote actuation, e.g. by Bowden cable.

The stainless steel versions allow the indexing plungers to be used in more aggressive environments.

Specification

Guide
Stainless steel precision castingNI

  • CF-8
  • Plain, matte shot-blasted

Plunger pin
Stainless steel AISI 303

Pressure spring
Stainless steel AISI 301

Lifting ring / wire loop
Stainless steel AISI 301

RoHS

Accessory

Locators GN 417.1

Technical drawing

3D
GN 417 Indexing Plungers, Stainless Steel, with Lifting Ring / with Wire Loop, without Rest Position sketch
Hide technical drawing
GN 417 Indexing Plungers, Stainless Steel, with Lifting Ring / with Wire Loop, without Rest Position sketch

Article options / Table

Type

AWith pull ring
DWith wire loop
Show / Hide columns
d1
Pin  h11
Bore +0,03 / +0,08		b1b2b3b4 -0,2d2d3h1h2h3k1 ±0,05k2k3k4l1l2Spring load in N ≈
initial
end
42216,563,3146741014484,5413312
5282284,3187,29,54,513,5185107515,5524
63227,5105,4249,510,5515,5215,51210621521
83433125,43011,812,5618,5235,51215,5826622
10393514,56,53011,814,5621,752761513,51026425

Build & Price

Open 3D configurator
Specifications



Bolt diameter d1
Type


Material

Selected Part (How to order)

Total (net)
7,77 €
plus VAT 1,48 €
gross 9,25 €
In stock
Weight: 0,012 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181900
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
