You are here: Product Overview  >  3.1 Indexing, Locking, Blocking with Pins and Ball-Shaped Elements  >  Indexing Plungers  >  GN 717 Stainless Steel Indexing Plungers previous product next product

GN 717 Stainless Steel Indexing Plungers with Lifting Ring / with Wire Loop, without Rest Position

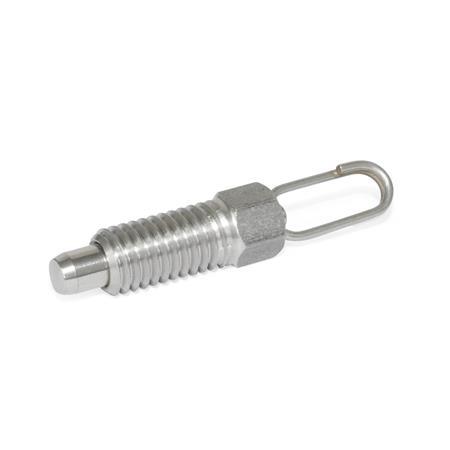

GN 717 Stainless Steel Indexing Plungers, with Lifting Ring / with Wire Loop, without Rest Position Type: D - With wire loop, without locknut Material: NI - Stainless steel
Type: D - With wire loop, without locknut
Material: NI - Stainless steel
GN 717 Stainless Steel Indexing Plungers, with Lifting Ring / with Wire Loop, without Rest Position Type: D - With wire loop, without locknut Material: NI - Stainless steel GN 717 Stainless Steel Indexing Plungers, with Lifting Ring / with Wire Loop, without Rest Position Type: A - With pull ring, without locknut Material: NI - Stainless steel GN 717 Stainless Steel Indexing Plungers, with Lifting Ring / with Wire Loop, without Rest Position Type: AK - With pull ring, with locknut Material: NI - Stainless steel GN 717 Stainless Steel Indexing Plungers, with Lifting Ring / with Wire Loop, without Rest Position Type: DK - With wire loop, with locknut Material: NI - Stainless steel
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 717 Print this page List of Indexing Plunger Types Load Rating Information Stainless Steel Characteristics Metric ISO Thread DIN 13 Metric ISO fine thread DIN 13

Product description

Information

Stainless steel indexing plungers GN 717 are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and positioning errors of the mating indexing bores.

Type A with pulling ring can be activated by finger in inaccessible places. If the indexing plungers are to be installed in areas which are not accessible by hand, type D with a pulling loop can be used for actuation from a distance. For example, this is possible with a retaining cable GN 111.2.

During assembly, the max. tightening torques shown in the table should not be exceeded when securing the lock nut.

Specification

Threaded body
Stainless steelNI
Zinc plated, blue passivated

Plunger pin
Stainless steel AISI 303

Pressure spring
Stainless steel AISI 301

Lifting ring / wire loop
Stainless steel AISI 301

RoHS

Technical drawing

3D
GN 717 Stainless Steel Indexing Plungers, with Lifting Ring / with Wire Loop, without Rest Position sketch
Hide technical drawing
GN 717 Stainless Steel Indexing Plungers, with Lifting Ring / with Wire Loop, without Rest Position sketch

Article options / Table

Type

AWith pull ring, without locknut
AKWith pull ring, with locknut
DWith wire loop, without locknut
DKWith wire loop, with locknut
Show / Hide columns
d1
Plunger -0,05
Bore +0,03/+0,08		d2d3d4el1l2l3l4l5
min.		l6l7A/Fmax. tightening
torque in
Nm		Spring
load in N≈
initial

end
3M 61466,933,53,5124,51032,912,962312
3M 6 x 0,751466,933,53,5124,51032,912,963312
4M 61466,933,54124,51033,412,962312
4M 8 x 11469,240,44,516613,54215,588524
5M 8187,29,245516613,542,515,587524
5M 8 x 1187,29,245516613,542,515,587524
5M 10 x 1187,211,545516613,542,515,51022524
6M 10249,511,557,16207,51754,420,91015521
6M 12 x 1,5249,513,857,16207,516,554,420,91238521
8M 123011,813,871824920,566,925,91220622
8M 12 x 1,53011,813,871824920,566,925,91220622
8M 16 x 1,53011,819,671824920,566,925,91780622
10M 16 x 1,53011,819,674,81026922,570,925,91780427

Build & Price

Open 3D configurator
Specifications



Bolt diameter d1
Collet thread d2
Type




Material

Selected Part (How to order)

Total (net)
2,94 €
plus VAT 0,56 €
gross 3,50 €
In stock
Weight: 0,004 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73181900
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
