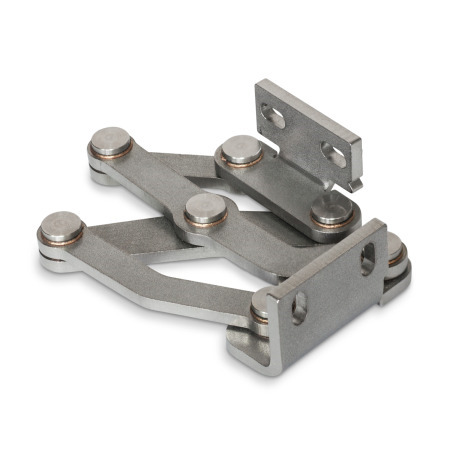

L | Fixing angle piece left |
R | Fixing angle piece right |
l1 | d | h1 | h2 | h3 | l2 | l3 | l4 | l5 | l6 | l7 | l8 | l9 | m1 | m2 | r | s | x | y |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
40 | 5,3 | 7,5 | 28 | 2,5 | 26 | 36 | 70,1 | 105,2 | 74,5 | 27,4 | 101,9 | 16 | 25 | 5 | 78,5 | 4 | 13 | 29,5 |
50 | 6,5 | 10 | 35 | 2,5 | 35 | 46 | 92,3 | 140 | 102,8 | 39,3 | 134,7 | 27,8 | 30 | 6 | 105 | 5 | 18 | 38 |
60 | 8,5 | 12,5 | 40 | 2,5 | 40 | 61 | 116,5 | 179,5 | 125,2 | 51,3 | 172,2 | 37,2 | 36 | 8 | 137,5 | 5 | 19 | 47 |
The multiple-joint hinges can be installed on the housing with the slots of the fixing angle piece oriented either perpendicular or parallel to the hinge axis. This results in the two pivot characteristics depicted. |
|||||||||||
The multiple-joint hinges can be adjusted in three planes during installation. For example, this allows tolerances to be adjusted or the required compressive forces for seals to be established. Two planes can be adjusted via the parallel or perpendicular slots in the fixing angle pieces. In the third plane, position corrections can be made using the spacer plates GN 2370. |
Flaps, hatches and doors can be inset, flush or mitered. The maximum wall thicknesses and bend sizes for sheet metal constructions given below arise from the respective installation type.
|
||||||||||||||||||||||||||||||||||||||||||||||
Show / Hide columns
|
||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||
Show / Hide columns
|
||||||||||||||||||||||||||||||||||||||||||||||
The design variants shown represent standard installation conditions. If the installation position of the hinge is changed or one of the two wall thickness dimensions is lower than s or b, the maximum achievable dimensions change independently of each other. This makes it possible in some cases to work with larger wall thickness dimensions than those specified with the same hinge size. A simple design check via CAD or a test setup is therefore recommended. |
The maximum load of the multiple-joint hinge specified below applies to the standard use cases and serves for orientation in the case of deviating applications. The resulting forces lead to slight elastic deformation, which can be compensated for by means of the adjustment options, if necessary. |
||||||||||||||||||||||||||
Show / Hide columns
|
