GN 132.9 Two-Way Connector Clamps Plastic

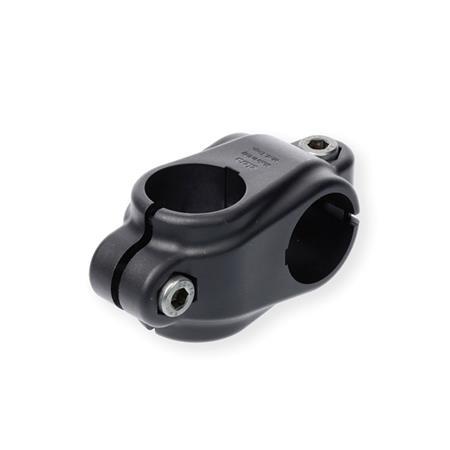

The clamping bore axes of the two-way connector clamps GN 132.9 are arranged at an angle of 90° to each other. They hold typical construction tubes with full surface contact over the entire cross-section of the bore.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping. Adapter bushings GN 290 can be used to reduce the bore cross-sections to a smaller diameter.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911.9 listed in the table as accessories.

The plastic used in version V is made from blue, visually detectable and FDA-compliant plastic granulate as per FDA CFR.21 and EU 10/2011.

Specification

Connector clamp
Plastic, Polyamide (PA)

• Glass fiber reinforced
• Operating temperature -20 °C to +100 °C
• Color
  • Black, RAL 9005, matte finishS
  • Gray, RAL 7040, matte finishG
  • Blue, RAL 5005, matte finishV
    FDA compliant material
    Visually detectable

Socket cap screws ISO 4762
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking with polyamide ring

RoHS

Accessory

Construction Tubes GN 990 (Aluminum)
Construction Tubes GN 990 (Stainless Steel )
Adapter Bushings GN 290
Adjustable Hand Levers GN 911.9
