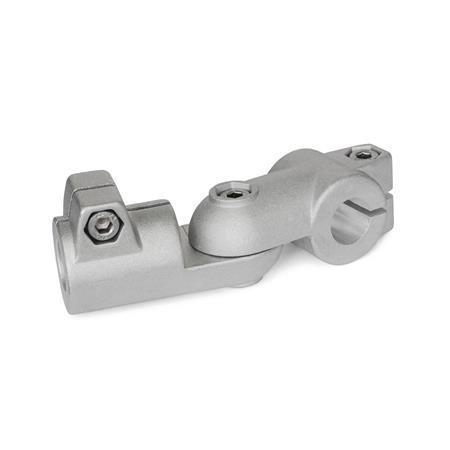

Swivel Clamp Connector Joints GN 288

d₁ Bore	d₂ Bore	b Swivel width	k₁	k₂	l₁	l₂	l₃	m₁	m₂	z₁ Screw locations	z₂ Screw location	Accessory Recom. hand lever GN 911 for z₁ l₄	for z₂ l₄

B 20	B 20	40	42,5	40	147	52	40	43	72	M8-25	M8-30	-	63 \| 78
B 25	B 25	40	42,5	40	147	52	40	43	72	M8-25	M8-30	63 \| 78	63 \| 78
B 30	B 30	40	42,5	40	147	52	40	43	72	M8-25	M8-30	63 \| 78	63 \| 78
B 40	B 40	65	74	65	230	77,5	65	70	115	M10-50	M10-55	-	78 \| 92
B 42	B 42	65	74	65	230	77,5	65	70	115	M10-50	M10-55	-	78 \| 92
B 45	B 45	65	74	65	230	77,5	65	70	115	M10-50	M10-55	78 \| 92	78 \| 92
B 48	B 48	65	74	65	230	77,5	65	70	115	M10-50	M10-55	78 \| 92	78 \| 92
B 50	B 50	65	74	65	230	77,5	65	70	115	M10-50	M10-55	78 \| 92	78 \| 92
