GN 70 Holding Disks Steel, for Retaining Magnets

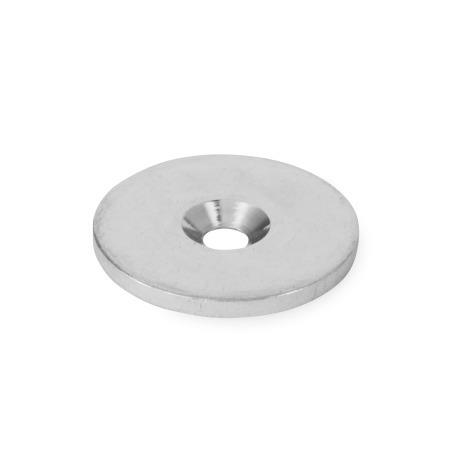

GN 70 Holding Disks, Steel, for Retaining Magnets Type: A - Flat, without stop edge Material: ST - Steel
Type: A - Flat, without stop edge
Material: ST - Steel
GN 70 Holding Disks, Steel, for Retaining Magnets Type: A - Flat, without stop edge Material: ST - Steel GN 70 Holding Disks, Steel, for Retaining Magnets Type: B - Flat, with stop edge Material: ST - Steel
Standard sheet GN 70 Print this page

Product description

Information

Holding disks GN 70 are used as companion parts for retaining magnets when they are used in connection with non-magnetic materials.

Type B prevents the magnet from sliding since the magnetive forces are generally larger than the achievable lateral forces arising due to the friction partners present.

They can be fixed with countersunk screws e.g. DIN 7991, but also with any commercial wood or sheet metal countersunk screws.

Specification

SteelST
Zinc plated

RoHS

Technical drawing

3D
GN 70 Holding Disks, Steel, for Retaining Magnets sketch
Hide technical drawing
GN 70 Holding Disks, Steel, for Retaining Magnets sketch

Article options / Table

Type

AFlat, without stop edge
BFlat, with stop edge
Show / Hide columns
d1
Type A		d1
Type B		d2 +1d3 +1h ±0,5Length ls
12 ±0,1-3,56,5--2
17 ±0,1-5,58,5--2
27 ±0,227 ±0,25,5118213
34 +0,2/+0,834 +0,2/+0,85,5118293
45 +0,1/+0,545 +0,1/+0,55,5118393
64 ±0,364 ±0,35,5118583

Build & Price

Open 3D configurator
Specifications

Diameter d1
Diameter d1
Type


Material

Selected Part (How to order)

Total (net)
0,51 €
plus VAT 0,10 €
gross 0,61 €
In stock
Weight: 0,001 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
72125090
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
