GN 52.3 Retaining Magnets Rod-Shaped, with Internal Thread

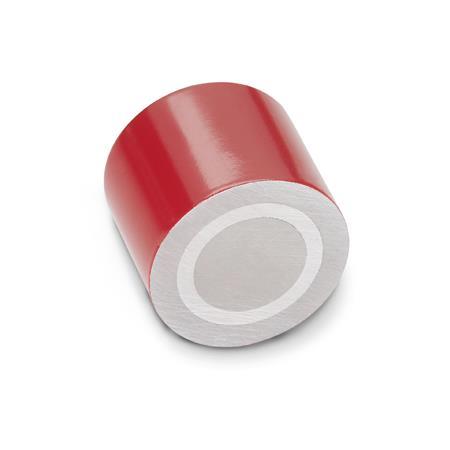

GN 52.3 Retaining Magnets with Internal Thread Finish: RT - Red, Lacquered
Finish: RT - Red, Lacquered
GN 52.3 Retaining Magnets with Internal Thread Finish: RT - Red, Lacquered GN 52.3 Retaining Magnets with Internal Thread Finish: ZB - Zinc plated
Standard sheet GN 52.3 Print this page More Information on Retaining Magnets

Product description

Information

Retaining magnets GN 52.3, are combined with the zinc-plated or red-painted steel housing and insulation of brass/aluminum into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.

Specification

Housing
Steel

Material of the magnet
AlNiCoAN
Aluminum, nickel, cobalt

Finish

  • Zinc platedZBZB
    Temperature resistant up to 350 °C
  • Red, LacqueredRTRT
    Temperature resistant up 180 °C

RoHS

Accessory

Holding Disks GN 70
Adhesive Disks GN 70.1

Technical drawing

3D
GN 52.3 Retaining Magnets with Internal Thread sketch
Hide technical drawing
GN 52.3 Retaining Magnets with Internal Thread sketch

Article options / Table

Show / Hide columns
d1Tolerances
Finish ZB

Finish RT		d2h ±0,2tNominal magnetic forces
in N
12,5±0,1±0,2M 416620
17±0,1±0,2M 616526
21±0,1±0,2M 619740
27±0,1±0,2M 625865
35±0,1±0,2M 6309150

Build & Price

Open 3D configurator
Material of the magnet

Diameter d1
Finish
RT
ZB

Selected Part (How to order)

Total (net)
3,71 €
plus VAT 0,70 €
gross 4,41 €
In stock
Weight: 0,012 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
85051190
