Product Family: Stainless Steel (697 Hits) You are here: Product Overview  >  3.2 Mounting, Positioning, Leveling with Screws, Clamping and Supporting Elements  >  Washers  >  DIN 6319 Stainless Steel Spherical Washers, Dished Washers previous product next product

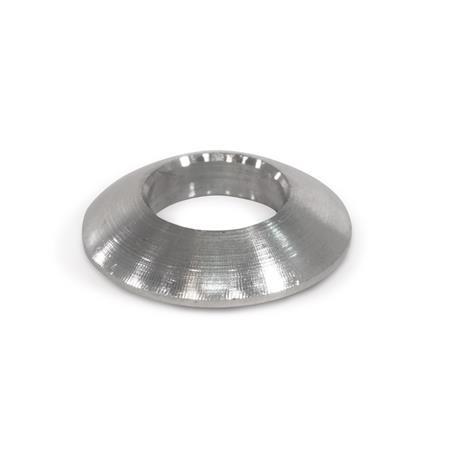

DIN 6319 Stainless Steel Spherical Washers, Dished Washers Material AISI 316


DIN 6319 Spherical Washers, Dished Washers, Stainless Steel, Material AISI 316 Type: C - Spherical seat washer Material: A4 - Stainless steel
Type: C - Spherical seat washer
Material: A4 - Stainless steel
DIN 6319 Spherical Washers, Dished Washers, Stainless Steel, Material AISI 316 Type: C - Spherical seat washer Material: A4 - Stainless steel DIN 6319 Spherical Washers, Dished Washers, Stainless Steel, Material AISI 316 Type: D - Dished washer with d<sub>3</sub> = d<sub>2</sub> Material: A4 - Stainless steel
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet DIN 6319 Print this page Stainless Steel Characteristics ISO Fundamental Tolerances

Product description

Information

Stainless steel spherical washers and dished washers DIN 6319 are used for clamping on non-parallel surfaces.

Thanks to the material used, the spherical washers and dished washers are generally suited for particularly aggressive environmental conditions.

Specification

Stainless steelA4 AISI 316
Not hardened

RoHS

On request

Stainless steel spherical washers, type G with d4 > d2
(enlarged outer diameter)

Technical drawing

3D
DIN 6319 Spherical Washers, Dished Washers, Stainless Steel, Material AISI 316 sketch
Hide technical drawing
DIN 6319 Spherical Washers, Dished Washers, Stainless Steel, Material AISI 316 sketch

Article options / Table

Type

CSpherical seat washer
DDished washer with d3 = d2
Show / Hide columns
d1 H13
Type C
Type D		d2d3d4d5
Screw		h1h2h3h4 ≈rMax. transferable static
bolt force in kN
6,47,1121211M 60,72,32,84,296
8,49,6171714,5M 80,63,23,55,61210
10,512212118,5M 100,844,26,51517
1314,2242420M 121,14,6581725
1516,5282824,8M 141,255,68,52234
1719303026M 161,35,36,29,62247
2123,2363631M 2026,37,511,72773
2528444437M 242,48,29,515,232105
3135565649M 303,611,21219,241168

Build & Price

Open 3D configurator
Specifications


Bore diameter d1 (Type C)
Bore diameter d1 (Type D)
Type


Material

Selected Part (How to order)

Total (net)
0,79 €
plus VAT 0,15 €
gross 0,94 €
In stock
Weight: 0,001 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
73182200
