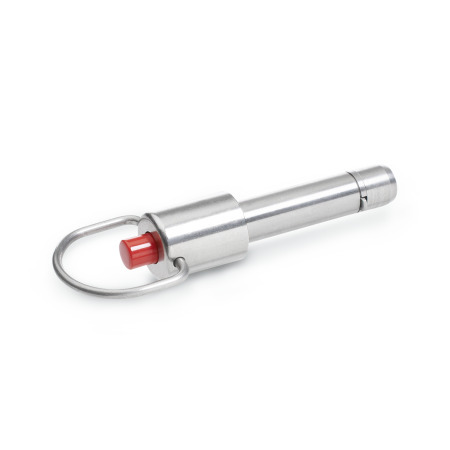

GN 214.3 Locking Pins Stainless Steel, Slide Plastic, with Axial Lock (Pawl)

GN 214.3 Locking Pins, Stainless Steel, Slide Plastic, with Axial Lock

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard sheet GN 214.3 Print this page List of Lock Pin Types Load Capacity of Ball Lock Pins / Locking Pins Stainless Steel Characteristics Plastic Characteristics

Product description

Locking pins with axial lock GN 214.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of stainless steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The version with swiveling lifting ring is ideal for the use in confined spaces.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).

Specification

Pin
Stainless steel AISI 303

Pawl
Stainless steel sheet metal AISI 304

Lifting ring
Stainless steel AISI 301

Push button / Slide
Plastic

Temperature resistant up to 80 °C
Push button red

Pressure spring
Stainless steel AISI 301

RoHS

Accessory

Ball Chains GN 111
Ball Chains GN 111.5 (Edelstahl)
Retaining Cables GN 111.2
Retaining Cables GN 111.2
Spiral Retaining Cables GN 111.4

GN 214.3 Locking Pins, Stainless Steel, Slide Plastic, with Axial Lock sketch

Hide technical drawing

GN 214.3 Locking Pins, Stainless Steel, Slide Plastic, with Axial Lock sketch

Article options / Table

Show / Hide columns

d₁ -0,1	l₁ +0,4 Minimum size															a	b	d₂	d₃	d₄	d₅	l₂	l₃

6	10	12	16	20	25	30	35	40	45	50	60	70	80	-	-	2,3	0,5	7,3 +0,5	5,9	12	23	7	38
8	10	16	20	25	30	35	40	45	50	60	70	80	90	100	-	2,8	0,6	9,8 +0,5	7,9	12	23	8,4	38
10	15	20	25	30	35	40	45	50	60	70	80	90	100	110	120	3,3	1	11,7 +1	9,9	16	28	9,8	42
12	20	25	30	35	40	45	50	60	70	80	90	100	110	120	-	3,8	1	13,7 +1	11,9	16	28	11,3	42
16	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	4,8	1,2	18,7 +1	15,9	20	32	14,2	46,5

Build & Price

Load capacity of ball lock pins

Skizze Belastbarkeit Steckbolzen

Information
The load capacities specified in the table for the double sided shearing resistance (breaking strength) have been calculated or theoretically defined on the basis of DIN 50141.

At the same time, the endangered bolt cross-section S, according to a nearby sketch, was considered in two shear planes before breakage.

The values were arrived at by a series of tests whereby a limited number of levelling feet were subjected for a limited time to a vertical static load to the feet. In general, they do not constitute a warranty of condition.

The user must determine whether the product is suitable for the intended purpose. Environmental factors can influence the specified values.

An appropriate safety factor must be taken into account in the design.

Load capacity F in kN ≈ double sided shearing resistance acc. DIN 50141 (breaking strength)

Show / Hide columns

d₁	GN 214.3

6	17
8	35
10	47
12	75
16	138

Selected Part (How to order)

Part number

Total (net)

12,81 €

plus VAT 2,43 €
gross 15,24 €

In stock

incl. material surcharge: 0,03 €

The material surcharge is already included in the price.

Weight: 0,018 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

73182900

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
