Medium Duty Casters GN 22894 (RE.F7-N-HT)

d₁ Wheel Ø	b	d₂	d₃	d₄	h	l₁	l₂	l₃	m₁	m₂	m₃	m₄	Max.  dynamic load capacity in N

80	35	9	12	73	107	100	85	40	45	60	75	80	1500
100	35	9	12	73	128	100	85	35	45	60	75	80	2000

Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

GN 22870	x	-	-	-	-	-	x
GN 22872	x	-	x	-	-	-	-
GN 22873	x	x	x	x	x	x	x
GN 22874	x	x	x	x	x	x	x
GN 22875	x	x	x	x	x	x	x
GN 22880	x	-	x	-	-	-	x
GN 22882	x	-	x	-	-	-	-
GN 22884	x	-	x	-	-	-	x
GN 22885	x	-	x	-	-	-	-
GN 22886	x	x	x	x	x	x	x
GN 22887	x	-	x	-	-	-	-
GN 22892	x	-	x	-	-	-	-
GN 22894	x	-	x	-	-	-	-
GN 22868	x	-	x	-	-	-	-

Selected Part (How to order)

Part number

Total (net)

15,13 €

plus VAT 2,87 €
gross 18,00 €

In stock

ELESA Code: 448556

Description: RE.F7-080-SBL-N-HT

Weight: 0,770 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83022000

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.

CAD data

Other data formats

Save as favourite

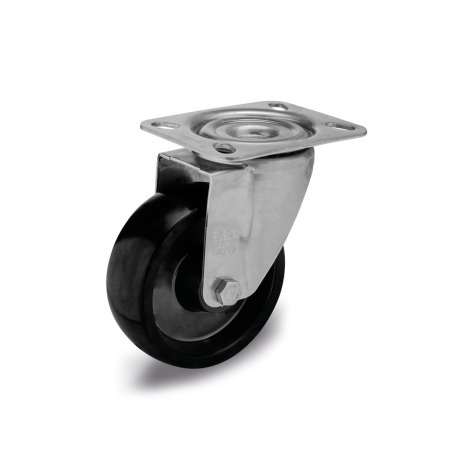

GN 22894 Medium Duty Casters Phenolic Resin, Light Version, for High Temperatures


Product Family Stainless Steel

Product description

Information

Specification

Technical drawing

Article options / Table

Bearing type

Type (bracket)

Coding

Build & Price

Suitable for floor type

Selected Part (How to order)

CAD data

CAD data

Login

Quick-Login

Do you find your product ?

This could also be interesting...

L	Swivel bracket with mounting plate
R	Swivel bracket with center hole
