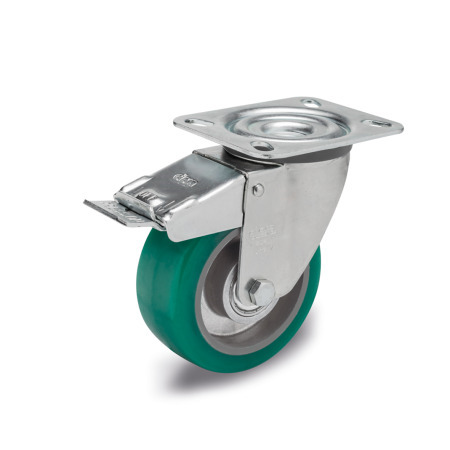

GN 22886 Medium Duty Casters Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version


Original design RE.F2-N

Bearing type: K - Ball bearing
Type (bracket): LF - Swivel bracket with mounting plate, with total lock brake
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22886 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing
Type (bracket): B - Rigid bracket
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22886 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing
Type (bracket): L - Swivel bracket with mounting plate
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

Standard sheet GN 22886 Print this page General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Information

Medium duty casters GN 22886 are used in industrial and public indoor areas for moving lightweight carts, for example.

The wheel tread is suitable for all floor types and offers low rolling resistance and high elasticity as well as good wear and tearing resistance. It runs quietly and is gentle on floors while offering good obstacle clearing and vibration damping.

The low wear on the ball bearing increases the service life, and the mounting to the inner ring can be accomplished with zero axial backlash.

Specification

Wheel tread
Plastic, polyurethane (PUR)

Cast
Green
Hardness 75 Shore A

Wheel core
Aluminum die casting

Bracket
Steel sheet metalST, zinc plated

Swivel head bracket

Dual grease-lubricated ball bearing
Dust protection ring on type L / LF
Plastic, polyethylene (PE)

Operating temperature -20 °C to +70 °C

RoHS

Technical drawing

GN 22886 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version sketch

Hide technical drawing

Article options / Table

Bearing type

K	Ball bearing

Type (bracket)

B	Rigid bracket
L	Swivel bracket with mounting plate
LF	Swivel bracket with mounting plate, with total lock brake

Coding

L	Light version

Show / Hide columns

d₁ Wheel Ø	b	d₂	h	l₁	l₂	l₃	m₁	m₂	m₃	m₄	r	Max.  dynamic load capacity in N

100	40	9	128	100	85	35	45	60	75	80	120	2000

Build & Price

Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

GN 22870	x	-	-	-	-	-	x
GN 22872	x	-	x	-	-	-	-
GN 22873	x	x	x	x	x	x	x
GN 22874	x	x	x	x	x	x	x
GN 22875	x	x	x	x	x	x	x
GN 22880	x	-	x	-	-	-	x
GN 22882	x	-	x	-	-	-	-
GN 22884	x	-	x	-	-	-	x
GN 22885	x	-	x	-	-	-	-
GN 22886	x	x	x	x	x	x	x
GN 22887	x	-	x	-	-	-	-
GN 22892	x	-	x	-	-	-	-
GN 22894	x	-	x	-	-	-	-
GN 22868	x	-	x	-	-	-	-

Selected Part (How to order)

Part number

Total (net)

43,32 €

plus VAT 8,23 €
gross 51,55 €

In stock

ELESA Code: 452466

Description: RE.F2-100-PSL-N

Weight: 0,830 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83022000

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
