You are here: Product Overview > 3.10 Transporting with Wheels and Casters > Medium Duty Casters > GN 22887 Medium Duty Casters previous product

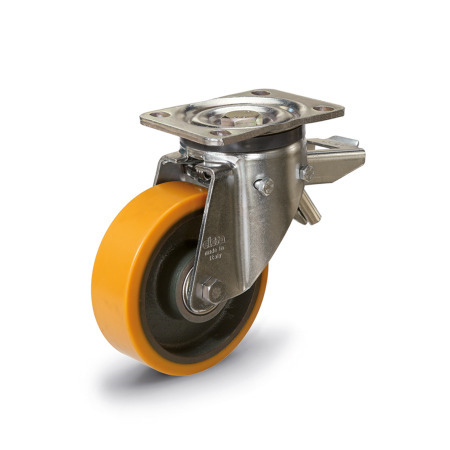

GN 22887 Medium Duty Casters Wheel Tread Polyurethane, Wheel Core Cast Iron, Medium Version


Original design RE.F4-H

Bearing type: K - Ball bearing
Type (bracket): LF - Swivel bracket with mounting plate, with total lock brake
Coding: M - Medium version
Material (bracket): ST - Steel sheet metal

GN 22887 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Cast Iron, Medium Version Bearing type: K - Ball bearing
Type (bracket): B - Rigid bracket
Coding: M - Medium version
Material (bracket): ST - Steel sheet metal

GN 22887 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Cast Iron, Medium Version Bearing type: K - Ball bearing
Type (bracket): L - Swivel bracket with mounting plate
Coding: M - Medium version
Material (bracket): ST - Steel sheet metal

Standard sheet GN 22887 Print this page General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Information

Medium duty casters GN 22887 are used in industrial and public indoor areas for moving medium weight carts, for example.

The wheel tread offers low rolling resistance as well as good wear and tearing resistance.

The low wear on the ball bearing increases the service life, and the mounting to the inner ring can be accomplished with zero axial backlash.

Specification

Wheel tread
Plastic, polyurethane (PUR)

Cast
Yellow
Hardness 92 Shore A

Wheel core
Cast iron

Bracket
Steel sheet metalST, zinc plated, yellow passivated

Swivel head bracket

Dual grease-lubricated ball bearing
Dust protection ring on type L / LF
Plastic, polyethylene (PE)

Operating temperature -20 °C to +80 °C

RoHS

Technical drawing

GN 22887 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Cast Iron, Medium Version sketch

Hide technical drawing

Article options / Table

Bearing type

K	Ball bearing

Type (bracket)

B	Rigid bracket
L	Swivel bracket with mounting plate
LF	Swivel bracket with mounting plate, with total lock brake

Coding

M	Medium version

Show / Hide columns

d₁ Wheel Ø	b	d₂	h	l₁	l₂ Type B	Type L / LF	l₃	m₁	m₂ Type B	Type L / LF	m₃	m₄	r	Max.  dynamic load capacity in N

100	38	9	138	100	85	85	46	45	60	60	75	80	123	3500
125	50	11	170	140	115	110	70	73	85	87	105	105	126	5500
150	50	11	200	140	115	110	70	73	85	87	105	105	126	7000
200	50	11	250	140	115	110	70	73	85	87	105	105	126	7500

Build & Price

Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

GN 22870	x	-	-	-	-	-	x
GN 22872	x	-	x	-	-	-	-
GN 22873	x	x	x	x	x	x	x
GN 22874	x	x	x	x	x	x	x
GN 22875	x	x	x	x	x	x	x
GN 22880	x	-	x	-	-	-	x
GN 22882	x	-	x	-	-	-	-
GN 22884	x	-	x	-	-	-	x
GN 22885	x	-	x	-	-	-	-
GN 22886	x	x	x	x	x	x	x
GN 22887	x	-	x	-	-	-	-
GN 22892	x	-	x	-	-	-	-
GN 22894	x	-	x	-	-	-	-
GN 22868	x	-	x	-	-	-	-

Selected Part (How to order)

Part number

Total (net)

41,39 €

plus VAT 7,86 €
gross 49,25 €

In stock

ELESA Code: 451461

Description: RE.F4-100-PSL-H

Weight: 1,520 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83022000
