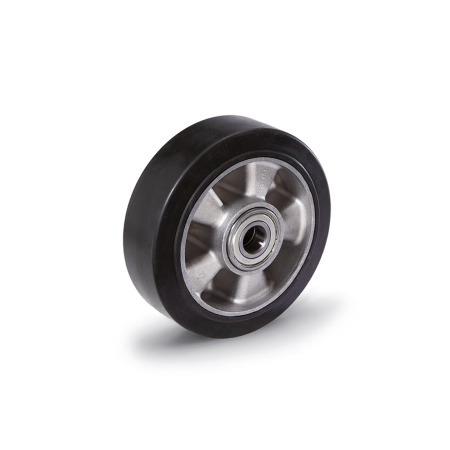

GN 22875 Wheels Wheel Tread Rubber, Wheel Core Aluminum


Original design RE.G2

Standard sheet GN 22875 Print this page General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Information

Wheels GN 22875 are used in industrial and public indoor and outdoor areas for moving medium weight carts, for example.

The wheel tread is suitable for all floor types. It runs quietly and is gentle on floors while offering good obstacle clearing and vibration damping.

The low wear on the ball bearing increases the service life, and the mounting to the inner ring can be accomplished with zero axial backlash.

Specification

Wheel tread
Natural rubber (NR)

Black
Hardness 70 Shore A

Wheel core
Aluminum die casting

Operating temperature -20 °C to +70 °C

RoHS

Technical drawing

GN 22875 Wheels, Wheel Tread Rubber, Wheel Core Aluminum sketch

Hide technical drawing

Article options / Table

Bearing type

K	Ball bearing

Type

A	Wheel without bracket

Show / Hide columns

d₁ Wheel Ø	b₁	b₂	d₂	Recommended ergonomic max. load in N	Max. static load capacity in N	Max.  dynamic load capacity in N

100	40	40	15	1800	2500	1800
125	50	59	20	2300	3200	2300
160	50	58	20	3000	4200	3000
200	50	58	20	3000	10000	5000

Build & Price

Specifications

GN 22875 Wheels, Wheel Tread Rubber, Wheel Core Aluminum

GN 22875 Medium Duty Casters, Wheel Tread Rubber, Wheel Core Aluminum, Medium Version

Wheel Ø d₁

100

125

160

200

Bearing type

K - Ball bearing

Type

A - Wheel without bracket

Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

GN 22870	x	-	-	-	-	-	x
GN 22872	x	-	x	-	-	-	-
GN 22873	x	x	x	x	x	x	x
GN 22874	x	x	x	x	x	x	x
GN 22875	x	x	x	x	x	x	x
GN 22880	x	-	x	-	-	-	x
GN 22882	x	-	x	-	-	-	-
GN 22884	x	-	x	-	-	-	x
GN 22885	x	-	x	-	-	-	-
GN 22886	x	x	x	x	x	x	x
GN 22887	x	-	x	-	-	-	-
GN 22892	x	-	x	-	-	-	-
GN 22894	x	-	x	-	-	-	-
GN 22868	x	-	x	-	-	-	-

Selected Part (How to order)

Part number

Total (net)

20,85 €

plus VAT 3,96 €
gross 24,81 €

In stock

ELESA Code: 452771

Description: RE.G2-100-RSL

Weight: 0,440 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83022000
