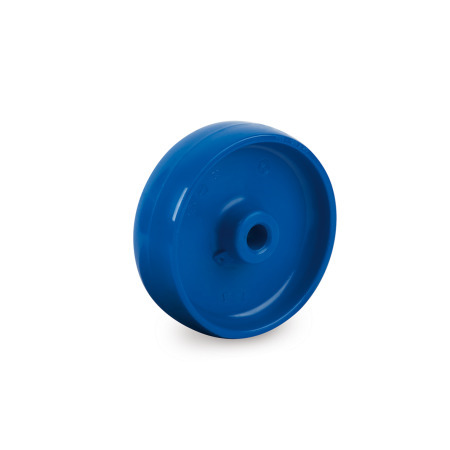

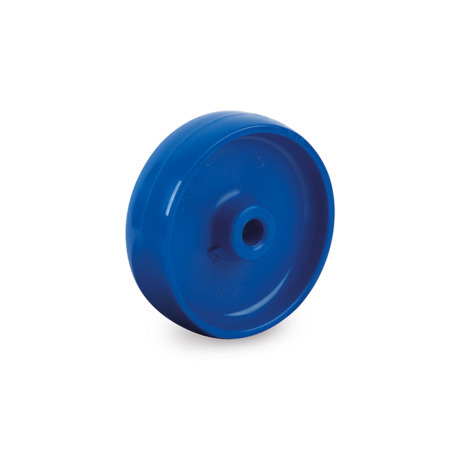

GN 22892 Wheels Polyamide


Original design RE.F8

Bearing type: G - Friction bearing
Type: A - Wheel without bracket

GN 22892 Wheels, Polyamide Bearing type: K - Ball bearing
Type: A - Wheel without bracket

Standard sheet GN 22892 Print this page General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Information

Wheels GN 22892 are used in industrial and public indoor areas for moving transport carts, for example.

The wheel tread offers low rolling resistance as well as good wear and tearing resistance.

With bearing type K, the low wear on the ball bearing increases the service life, and the mounting to the inner ring can be accomplished with zero axial backlash.

Specification

Wheel tread / Wheel core
Plastic, polyamide (PA)

Single part
White
Hardness 70 Shore D

Operating temperature -30 °C to +80 °C

RoHS

Technical drawing

Hide technical drawing

Article options / Table

Bearing type

G	Friction bearing
K	Ball bearing

Type

A	Wheel without bracket

Show / Hide columns

d₁ Wheel Ø Bearing type G	Bearing type K	b₁ Bearing type G	Bearing type K	b₂ Bearing type G	Bearing type K	d₂ Bearing type G	Bearing type K	Recommended ergonomic max. load in N Bearing type G	Bearing type K	Max. static load capacity in N Bearing type G	Bearing type K	Max.  dynamic load capacity in N Bearing type G	Bearing type K

65	-	30	-	34	-	12	-	900	-	1250	-	1200	-
80	-	30	-	39	-	12	-	1500	-	2000	-	1800	-
100	-	30	-	44	-	12	-	1750	-	3500	-	3000	-
125	125	38	45	44	56	15	20	2000	4000	4500	7000	4000	6500
150	150	45	45	58	56	20	20	2500	4550	6000	8000	5000	7500
200	200	50	50	58	56	20	20	3150	6500	8000	10000	7300	9000

Build & Price

Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

GN 22870	x	-	-	-	-	-	x
GN 22872	x	-	x	-	-	-	-
GN 22873	x	x	x	x	x	x	x
GN 22874	x	x	x	x	x	x	x
GN 22875	x	x	x	x	x	x	x
GN 22880	x	-	x	-	-	-	x
GN 22882	x	-	x	-	-	-	-
GN 22884	x	-	x	-	-	-	x
GN 22885	x	-	x	-	-	-	-
GN 22886	x	x	x	x	x	x	x
GN 22887	x	-	x	-	-	-	-
GN 22892	x	-	x	-	-	-	-
GN 22894	x	-	x	-	-	-	-
GN 22868	x	-	x	-	-	-	-

Selected Part (How to order)

Part number

Total (net)

2,18 €

plus VAT 0,41 €
gross 2,59 €

In stock

ELESA Code: 450501

Description: RE.F8-065-RBL

Weight: 0,060 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83022000
