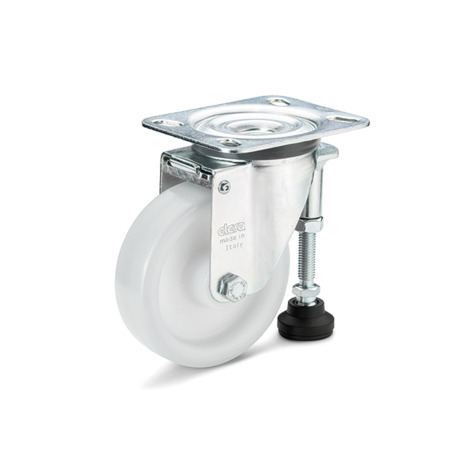

GN 22892 Medium Duty Casters Polyamide, Light Version, with Leveling Foot


Original design RLE.F8-N

Standard sheet GN 22892 Print this page General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Information

Medium duty casters GN 22892 are used in industrial and public indoor areas for positioning and moving mobile workbenches or equipment, for example.

The wheel tread offers low rolling resistance as well as good wear and tearing resistance.

The integrated levelling foot can be adjusted in height and ensures stable positioning.

Specification

Wheel tread / Wheel core
Plastic, polyamide (PA)

Single part
White
Hardness 70 Shore D

Bracket
Steel sheet metalST, zinc plated

Swivel head bracket

Dual grease-lubricated ball bearing
Dust seal
Plastic, polyethylene (PE)

Leveling foot

Foot
Plastic, polyamide (PA)
Glass fiber reinforced, black
Threaded stud
Steel zinc plated, blue passivated
Rubber pad
Acrylonitrile butadiene rubber (NBR)
70 Shore A, black

Operating temperature -30 °C to +80 °C

RoHS

Technical drawing

GN 22892 Medium Duty Casters, Polyamide, Light Version, with Leveling Foot sketch

Hide technical drawing

Article options / Table

Bearing type

G	Friction bearing

Type (bracket)

S	Swivel bracket with mounting plate, with leveling foot

Coding

L	Light version

Show / Hide columns

d₁ Wheel Ø	b	d₂	h₁	h₂	l₁	l₂	l₃	l₄	m₁	m₂	m₃	m₄	r	w ≈ Adjustable range	Max. dynamic load capacity in N

80	30	9	107	95	100	85	40	37	45	60	75	80	120	20	1800
100	30	9	128	118	100	85	35	37	45	60	75	80	120	22	2000
125	38	9	156	150	100	85	37	43	45	60	75	80	102	22	2200

Build & Price

Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

GN 22870	x	-	-	-	-	-	x
GN 22872	x	-	x	-	-	-	-
GN 22873	x	x	x	x	x	x	x
GN 22874	x	x	x	x	x	x	x
GN 22875	x	x	x	x	x	x	x
GN 22880	x	-	x	-	-	-	x
GN 22882	x	-	x	-	-	-	-
GN 22884	x	-	x	-	-	-	x
GN 22885	x	-	x	-	-	-	-
GN 22886	x	x	x	x	x	x	x
GN 22887	x	-	x	-	-	-	-
GN 22892	x	-	x	-	-	-	-
GN 22894	x	-	x	-	-	-	-
GN 22868	x	-	x	-	-	-	-

Selected Part (How to order)

Part number

Total (net)

50,56 €

plus VAT 9,61 €
gross 60,17 €

In stock

ELESA Code: 450981

Description: RLE.F8-080-SBP-AS-N

Weight: 0,700 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83022000

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity
