Base Plate Connector Clamps GN 162.3

Finish: BL - Plain finish, matte shot-plasted

Accessories for profile systems

Standard Parts in this product family are compatible with the most common aluminium profile systems. Using matching assembly sets, the Ganter standard elements are easily and cost-effectively connected with the profiles without the time-consuming compiling of individual parts in the order.

compatible with the common profile systems
for groove widths of 6, 8 and 10 mm
for profiles 30, 40 and 45 mm

Show all compatible products

Standard sheet GN 162.3 Print this page Product Family Standard Parts for Profile Systems Stainless Steel Characteristics Overview to appropriate standards of the assembly sets GN 965 Overview to appropriate standards of the assembly sets GN 968

Product description

The clamping bore of base plate connector clamps GN 162.3 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

Base plate connector clamps GN 162.3 can also be mounted to profile systems.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain finish, matte shot-plastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

RoHS

d₁ Bore	d₂	k Clamping length	l₁	l₂	t	x₁	x₂	y	z Screw location

B 10	5,5	40	34,5	25	7	50	38	30	M6-20
B 12	5,5	40	34,5	25	7	50	38	30	M6-20
B 14	5,5	40	34,5	25	7	50	38	30	M6-20
B 15	5,5	40	34,5	25	7	50	38	30	M6-20
B 16	5,5	40	34,5	25	7	50	38	30	M6-20
B 18	5,5	40	34,5	25	7	50	38	30	M6-20

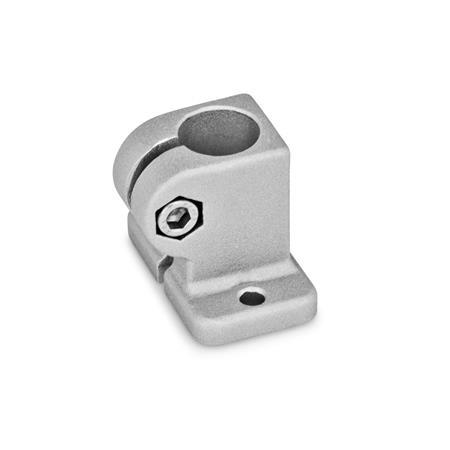

GN 162.3 Base Plate Connector Clamps Aluminum, with 2 Mounting Holes
