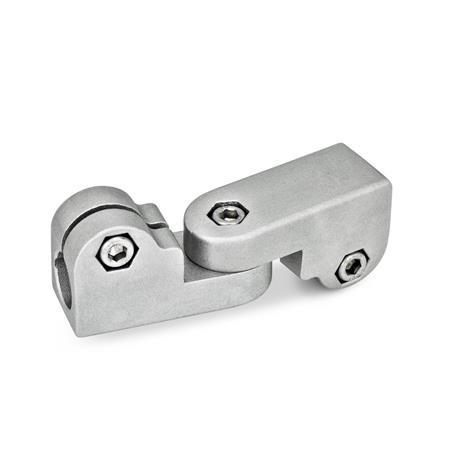

Swivel Clamp Connector Joints GN 285

d₁ Bore	d₂ Bore	b Swivel width	k₁	k₂	l₁	l₂	m₁	m₂	z₁ Screw locations	z₂ Screw locations	Accessory Recom. hand lever GN 911 for z₁ l₃	for z₂ l₃

B 12	B 12	B 14	B 15	B 16	B 18	25	31,5	31,5	97	34,5	48,5	48,5	M6-20	M6-20	63	45 \| 63
B 14	B 14	B 15	B 16	B 18	-	25	31,5	31,5	97	34,5	48,5	48,5	M6-20	M6-20	45 \| 63	45 \| 63
B 15	B 15	B 16	B 18	-	-	25	31,5	31,5	97	34,5	48,5	48,5	M6-20	M6-20	45 \| 63	45 \| 63
B 16	B 16	B 18	-	-	-	25	31,5	31,5	97	34,5	48,5	48,5	M6-20	M6-20	45 \| 63	45 \| 63
B 18	B 18	-	-	-	-	25	31,5	31,5	97	34,5	48,5	48,5	M6-20	M6-20	45 \| 63	45 \| 63
