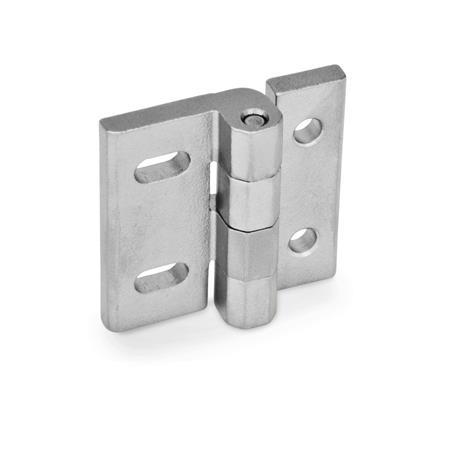

GN 235 Hinges Stainless Steel, Adjustable

GN 235 Hinges, Stainless Steel , Adjustable Material: NI - Stainless steel Type: DB - With through-holes, horizontally adjustable Finish: GS - Matte shot-blasted finish
Material: NI - Stainless steel
Type: DB - With through-holes, horizontally adjustable
Finish: GS - Matte shot-blasted finish

Click on a variant image to view it in the main product display area or use tab keys to navigate through product variants

Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard sheet GN 235 Print this page List of Hinge Types Load rating information of metal hinges Stainless Steel Characteristics

Product description

Stainless steel hinges GN 235 are adjustable in height or width along the slots, depending on the design, and are fastened with hex-head, oval-head or cylinder screws with a low head.

Thanks to sufficient space (installation space) available for screw heads and washers, the hinges can be opened by 180° without collision.

The hinge drill pattern corresponds with that of the GN 237 hinge family, which allows the hinges to be exchangeable.

Specification

Stainless steelNI AISI CF-8
Matte shot-blasted finishGS

Pin
Stainless steel AISI 316Ti

RoHS

Accessory

Spacer Plates GN 2370
Plates GN 2372

GN 235 Hinges, Stainless Steel , Adjustable sketch
Hide technical drawing
GN 235 Hinges, Stainless Steel , Adjustable sketch

Article options / Table

Type

HVertically adjustable
BHorizontally adjustable
HBVertically and horizontally adjustable
DWith through-holes
DHWith through-holes, vertically adjustable
DBWith through-holes, horizontally adjustable
Show / Hide columns
l1
D, DH, H
DB, HB
B		l2bd1d2h1h2h3h4 l3
D, DH, H
DB, HB, B		l4
D, DH, H, DB, HB
B		m1m2
404550455,35,341359,519162116212525
505560556,56,5616,6611,623,2212621263030
606876658,38,3821,4814,929,82633,52633,53636
