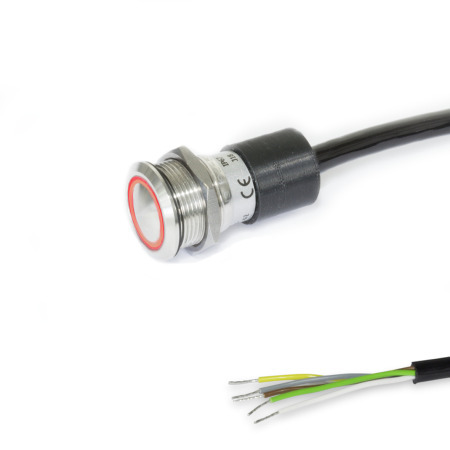

Switches GN 3310

Cable length l in meter Connection type K	Connection type KS	d Connection type K	Connection type KS	A/F

2	5	0,25	6	5	22

Electrical and mechanical properties

Button
Contacts
Contact material
Switching voltages

Switching current
mech. lifespan
elect. lifespan

Changeover contact, snap contact
silver alloy
max. 125 V (plug)
max. 240 V (cable)
max. 3 A
10⁶ switching cycles
50,000 switching cycles (under full load)

LED ring lighting
Operating voltage /
Operating current

bi-color (red / green)

24 V DC ± 10 % / 7 mA

Category of use (button)

AC 15: 24 V AC / 1 A / DC 13: 24 V DC / 0.7 A
AC 15: 110 V AC / 1 A / DC 13: 110 V DC / 0.2 A
AC 15: 220 V AC / 0.5 A / DC 13: 220 V DC / 0.1 A

acc. to IEC 60947-5-1

AC: 120 V AC / 5 A / DC: 12 V DC / 1 A
AC: 240 V AC / 3 A

acc. to UL 508

Connection type
Cable (K)
or
Plug connector (S)

PUR cable with open stranded wires (2 m or 5 m)

5-pin connector M12x1 with PUR cable 0.25 m

Tightening torque

min. 5 Nm / max. 12 Nm

Protection type

Front side IP 65 / IP 67

Mounting cut-out

Ø 19 +0.3 / +0.1

Approvals, conformity declarations

Selected Part (How to order)

Part number

Total (net)

56,43 €

plus VAT 10,72 €
gross 67,15 €

In stock

Weight: 0,126 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

85365007

Please note our order discounts.

With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €

Quantity

All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.
