AN | On the chamfer, above |
AR | On the chamfer, below |
FN | In the front, above |
FR | In the front, below |
R | Digits ascending clockwise |
L | Digits ascending anti-clockwise |
Counter Indication after one spindle revolution | Indication after one spindle revolution | Indication after one spindle revolution | corresponds to thread pitch | max. revolutions per minute |
---|---|---|---|---|
003 | 00.3 | 0.03 | 0,3 | 1500 |
010 | 01.0 | 0.10 | 1 | 1500 |
020 | 02.0 | 0.20 | 2 | 1250 |
030 | 03.0 | 0.30 | 3 | 830 |
040 | 04.0 | 0.40 | 4 | 625 |
050 | 05.0 | 0.50 | 5 | 500 |
100 | 10.0 | 1.00 | 10 | 250 |
When mounting the position indicator, an appropriately situated mounting hole is required for the torque support. |
If the position indicator is used with smaller shaft diameters, the hollow shaft diameter Ø 10 H7 can be reduced with adapter bushings GN 952.1. |
||||||||||
Clamping plates GN 955.6 can be used to clamp spindles after adjustment to secure them against independent or accidental turning. |
If reduction is desired in addition to installation of a control knob, control knobs GN 957 are available, which combine both functions in a single element. |
||||||||||

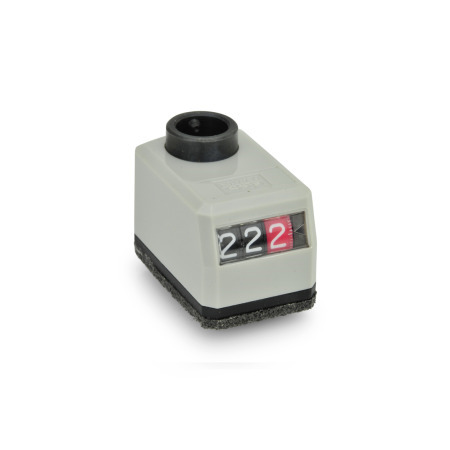

The position indicator is equipped with a hollow shaft that is slid directly onto the spindle and is connected to the spindle by a grub screw. The spindle rotations are transmitted to a counter directly by a gearbox. For torque support, a pin of the housing projects into a hole made on the machine side, establishing the position relative to the mounting site. |
|||||||||||
The transmission ratio and counting direction of the counter are determined by the pitch of the adjusting spindle. The indicated value after one turn starting from the 0 position serves as a characteristic value. Decimal places are indicated in red. |
