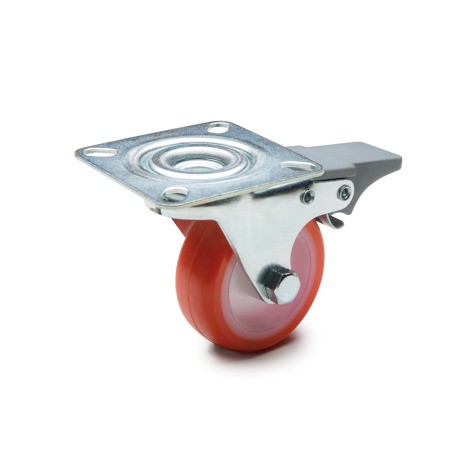

GN 22880 Light Duty Casters Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version


Original design RE.C6-C.

Bearing type: G - Friction bearing
Type (bracket): LF - Swivel bracket with mounting plate, with total lock brake
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22880 Light Duty Casters, Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version Bearing type: G - Friction bearing
Type (bracket): B - Rigid bracket
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22880 Light Duty Casters, Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version Bearing type: G - Friction bearing
Type (bracket): G - Swivel bracket with threaded stud
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22880 Light Duty Casters, Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version Bearing type: G - Friction bearing
Type (bracket): GF - Swivel bracket with threaded stud, with total lock brake
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22880 Light Duty Casters, Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version Bearing type: G - Friction bearing
Type (bracket): L - Swivel bracket with mounting plate
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22880 Light Duty Casters, Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version Bearing type: G - Friction bearing
Type (bracket): R - Swivel bracket with center hole
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

GN 22880 Light Duty Casters, Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version Bearing type: G - Friction bearing
Type (bracket): RF - Swivel bracket with center hole, with total lock brake
Coding: L - Light version
Material (bracket): ST - Steel sheet metal

Standard sheet GN 22880 Print this page General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Information

Light duty casters GN 22880 are used in industrial and public indoor areas for moving light materials and equipment, for example.

The wheel tread offers low rolling resistance and high elasticity as well as good wear and tearing resistance. It is good at overcoming obstacles.

Specification

Wheel tread
Thermoplastic polyurethane (TPU)

Injection molded
Red
Hardness 55 Shore D

Wheel core
Plastic, polyamide (PA)

Bracket
Steel sheet metalST, zinc plated

Swivel head bracket
Dual grease-lubricated ball bearing

Operating temperature -5 °C to +40 °C

RoHS

Technical drawing

GN 22880 Light Duty Casters, Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version sketch

Hide technical drawing

Article options / Table

Bearing type

G	Friction bearing

Type (bracket)

B	Rigid bracket
L	Swivel bracket with mounting plate
LF	Swivel bracket with mounting plate, with total lock brake
R	Swivel bracket with center hole
RF	Swivel bracket with center hole, with total lock brake
G	Swivel bracket with threaded stud
GF	Swivel bracket with threaded stud, with total lock brake

Coding

L	Light version

Show / Hide columns

d₁ Wheel ø	b	d₂	d₃	d₄	d₅	h	l₁ Type B	Type L / LF	l₂ Type B	Type L / LF	l₃	l₄	m₁ Type B	Type L / LF	m₂ Type B	Type L / LF	r	Max. dynamic load capacity in N

40	18	5	M 10	10	35	59	48	42	48	42	24	20	27	30	33	33	78	400
50	18	6	M 10	10	35	66	55	55	55	55	24	20	38,5	38,5	44	44	78	550
60	24	6	M 12	12	42	82	60	60	67	60	21	25	38,5	38,5	47	48	83	700

Build & Price

Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

GN 22870	x	-	-	-	-	-	x
GN 22872	x	-	x	-	-	-	-
GN 22873	x	x	x	x	x	x	x
GN 22874	x	x	x	x	x	x	x
GN 22875	x	x	x	x	x	x	x
GN 22880	x	-	x	-	-	-	x
GN 22882	x	-	x	-	-	-	-
GN 22884	x	-	x	-	-	-	x
GN 22885	x	-	x	-	-	-	-
GN 22886	x	x	x	x	x	x	x
GN 22887	x	-	x	-	-	-	-
GN 22892	x	-	x	-	-	-	-
GN 22894	x	-	x	-	-	-	-
GN 22868	x	-	x	-	-	-	-

Selected Part (How to order)

Part number

Total (net)

3,97 €

plus VAT 0,75 €
gross 4,72 €

In stock

ELESA Code: 451946

Description: RE.C6-040-PBL-C

Weight: 0,110 kg

If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0

RoHS: Yes

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).

Customs tariff number

83022000
