GN 22885 Medium Duty Casters Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version

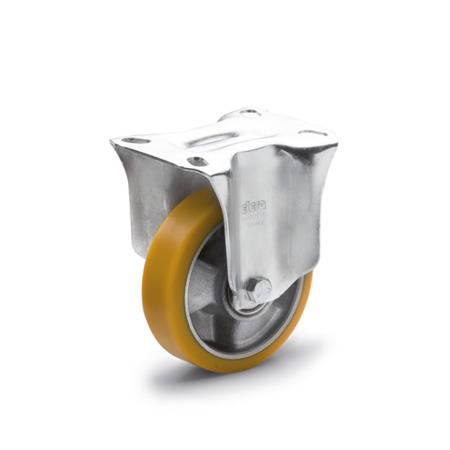

GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): RF - Swivel bracket with center hole, with total lock brake Coding: L - Light version Material (bracket): ST - Steel sheet metal
Original design RE.F5-N / -N-ESD
Bearing type: K - Ball bearing
Type (bracket): RF - Swivel bracket with center hole, with total lock brake
Coding: L - Light version
Material (bracket): ST - Steel sheet metal
GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): RF - Swivel bracket with center hole, with total lock brake Coding: L - Light version Material (bracket): ST - Steel sheet metal GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): B - Rigid bracket Coding: L - Light version Material (bracket): ST - Steel sheet metal GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): B - Rigid bracket Coding: L - Light version Material (bracket): STE - Steel sheet metal GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): L - Swivel bracket with mounting plate Coding: L - Light version Material (bracket): ST - Steel sheet metal GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): L - Swivel bracket with mounting plate Coding: L - Light version Material (bracket): STE - Steel sheet metal GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): LF - Swivel bracket with mounting plate, with total lock brake Coding: L - Light version Material (bracket): ST - Steel sheet metal GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): LF - Swivel bracket with mounting plate, with total lock brake Coding: L - Light version Material (bracket): STE - Steel sheet metal GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): R - Swivel bracket with center hole Coding: L - Light version Material (bracket): ST - Steel sheet metal GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): R - Swivel bracket with center hole Coding: L - Light version Material (bracket): STE - Steel sheet metal GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version Bearing type: K - Ball bearing Type (bracket): RF - Swivel bracket with center hole, with total lock brake Coding: L - Light version Material (bracket): STE - Steel sheet metal
ESD

Product Family ESD

ESD standard parts are made of conductive materials which help to eliminate static charges. They are used in applications where components sensitive to static charges are handled.

  • antistatic properties
  • complying with EN 100015/1 and ICE 61340-5-1.
Show all ESD products
Standard sheet GN 22885 Print this page Application video wheels and casters General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Information

Medium duty casters GN 22885 are used in industrial and public indoor areas for moving lightweight carts, for example.

The wheel tread offers low rolling resistance and high elasticity as well as good wear and tearing resistance.

The ESD version has antistatic properties and therefore meets the requirements of ISO 22878:2004.

The low wear on the ball bearing increases the service life, and the mounting to the inner ring can be accomplished with zero axial backlash.

Specification

Wheel tread

  • Plastic, polyurethane (PUR) at ST
    • Cast, yellow
    • Hardness 92 Shore A
  • Plastic, polyurethane (PUR) at STE
    • Electrically conductive (antistatic)
    • Electrical resistance < 109 Ω
    • Cast, dark grey
    • Wear resistant
    • Hardness 90 Shore A

Wheel core
Aluminum die casting

Bracket

  • Steel sheet metalST, zinc plated
  • Steel sheet metalSTE, zinc plated, ESD

Swivel head bracket

  • Dual grease-lubricated ball bearing
  • Dust protection ring on type L / LF
    Plastic, polyethylene (PE)

Operating temperature -20 °C to +80 °C

RoHS

Technical drawing

GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version sketch
Hide technical drawing
GN 22885 Medium Duty Casters, Wheel Tread Polyurethane, Wheel Core Aluminum, Light Version sketch

Article options / Table

Bearing type

KBall bearing

Type (bracket)

BRigid bracket
LSwivel bracket with mounting plate
LFSwivel bracket with mounting plate, with total lock brake
RSwivel bracket with center hole
RFSwivel bracket with center hole, with total lock brake

Coding

LLight version
Show / Hide columns
d1
Wheel Ø		bd2d3d4h
Type B / L / LF
Type R / RF		l1l2
Type B
Type L / LF		l3m1m2
Type B
Type L / LF		m3m4rMax. dynamic
load capacity in N
ST
Type STE
802591273107107100858540456060758012020001700
1003091273128128100858535456060758012020002000
1253591273156156100858537456060758012022002200
1504011201021941881401141105673858710510515630003000
2005011201022402361401141105673858710510515630003000

Build & Price

Specifications


Wheel Ø d1
Bearing type

Type (bracket)





Coding

Material (bracket)


Suitable for floor type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

  • For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
  • For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.
Show / Hide columns
StandardTilesAsphaltCement-resin,
concrete		Unpaved floorGrate floorFloor with chipsFloor with obstacles
GN 22870x-----x
GN 22872x-x----
GN 22873xxxxxxx
GN 22874xxxxxxx
GN 22875xxxxxxx
GN 22880x-x---x
GN 22882x-x----
GN 22884x-x---x
GN 22885x-x----
GN 22886xxxxxxx
GN 22887x-x----
GN 22892x-x----
GN 22894x-x----
GN 22868x-x----

Selected Part (How to order)

Total (net)
21,24 €
plus VAT 4,04 €
gross 25,28 €
In stock
ELESA Code: 451651
Description: RE.F5-080-PSL-N
Weight: 0,520 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83022000
Please note our order discounts.
With a total value (net) per order:
from 175,00 € -> 10 % discount
from 275,00 € -> 20 % discount
from 375,00 € -> 30 % discount

Surcharge for small volume purchases:
-> 15,00 Euro
for value of goods less than 25,00 €
-> 10,00 Euro
for value of goods from 25,00 to 49,99 €
All prices in accordance with our price list No. 56, valid from 1 September 2024, plus VAT only valid for Germany.

CAD data

At present, there is no direct download of 3D CAD data or 2D data for this part. Please send your inquiry by email directly to us. As soon as possible, we will send you the desired CAD-data.

Please add here your E-mail!


CAD Download Tutorial
Save as favourite
Recommend a product

Please enter the code you can find in the picture.

Do you find your product ?

Our service team is available from Monday to Friday between 7:00 AM and 5:30 PM: +49 7723 6507 - 0

To the customised elements | To the contact persons
