GN 337 Hinges Detachable / Zinc Die Casting

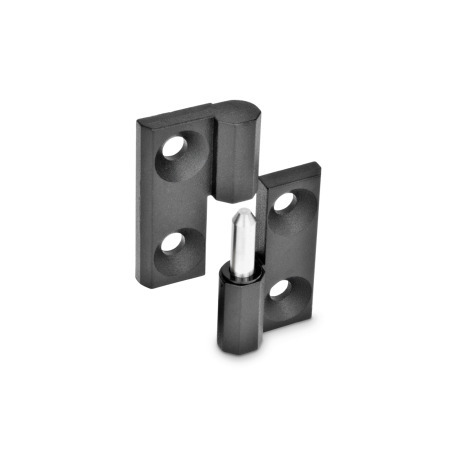

GN 337 Hinges, Detachable, Zinc Die casting Material: ZD - Zinc die casting
Finish: SW - Black, RAL 9005, textured finish
Identification no.: 1 - Fixed bearing (pin) right
Material: ZD - Zinc die casting
Finish: SW - Black, RAL 9005, textured finish
Identification no.: 1 - Fixed bearing (pin) right
GN 337 Hinges, Detachable, Zinc Die casting Material: ZD - Zinc die casting
Finish: SW - Black, RAL 9005, textured finish
Identification no.: 1 - Fixed bearing (pin) right GN 337 Hinges, Detachable, Zinc Die casting Material: ZD - Zinc die casting
Finish: SR - Silver, RAL 9006, textured finish
Identification no.: 1 - Fixed bearing (pin) right GN 337 Hinges, Detachable, Zinc Die casting Material: ZD - Zinc die casting
Finish: SR - Silver, RAL 9006, textured finish
Identification no.: 2 - Fixed bearing (pin) left GN 337 Hinges, Detachable, Zinc Die casting Material: ZD - Zinc die casting
Finish: SW - Black, RAL 9005, textured finish
Identification no.: 2 - Fixed bearing (pin) left

Technical drawing

3D
Hide technical drawing
GN 337 Hinges, Detachable, Zinc Die casting sketch

Article options / Table

Type

A2x2 bores for countersunk screws

Identification no.

1Fixed bearing (pin) right
2Fixed bearing (pin) left
Show / Hide columns
l1l2d1d2h1h2h3h4  +0,5l3m1m2
40405,34955,511162525
50506,4611,566,513213030
60608,381588,517263636

Build & Price

Open 3D configurator
Specifications

Material

Width l1
Length l2
Type

Identification no.


Finish
SR
SW

Selected Part (How to order)

Total (net)
6,40
plus VAT 1,22 €
gross 7,62 €
In stock
incl. material surcharge: 0,05 €
The material surcharge is already included in the price.
Weight: 0,041 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
Customs tariff number
83021000
