GN 161.1 Hinges Zinc Die Casting, Detachable

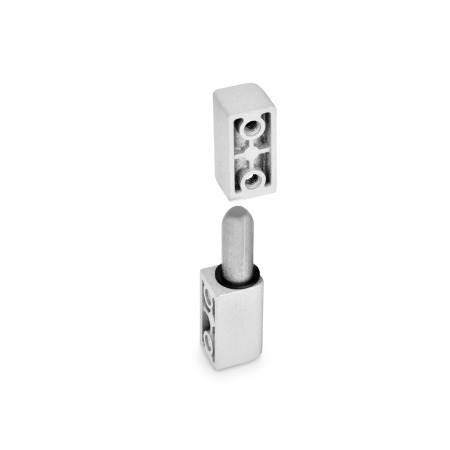

GN 161.1 Hinges, Zinc Die Casting, Detachable Color: SR - Silver, RAL 9006, textured finish
Color: SR - Silver, RAL 9006, textured finish
GN 161.1 Hinges, Zinc Die Casting, Detachable Color: SR - Silver, RAL 9006, textured finish GN 161.1 Hinges, Zinc Die Casting, Detachable Color: SW - Black, RAL 9005, textured finish
Standard sheet GN 161.1 Print this page List of Hinge Types

Product description

Information

Hinges GN 161.1 are a variant with highly attractive design. The fixing screws are invisible.

During the load tests, the hinges were gradually loaded and relieved at room temperature with incrementally increasing force.

For the specified values, an insignificant permanent deformation remained after relieving the load which had no effect on the function and appearance. In most cases, the failure loads are multiples of the specified value.

The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition.

The user must determine from case to case whether a product is suitable for the intended use. Environmental influences and aging may influence these values.

Specification

Zinc die casting
Powder coated
Black, RAL 9005, textured finishSWSW
Silver, RAL 9006, textured finishSRSR

Washer
Plastic

RoHS

Technical drawing

3D
GN 161.1 Hinges, Zinc Die Casting, Detachable sketch
Hide technical drawing
GN 161.1 Hinges, Zinc Die Casting, Detachable sketch

Article options / Table

Show / Hide columns
bl1dl2l3l4l5mt1t2Radial load
in N		Axial load
in N
1563M 517316,1101951023001500

Build & Price

Open 3D configurator
Width b
Length l1
Color
SR
SW

Selected Part (How to order)

Total (net)
7,11 €
plus VAT 1,35 €
gross 8,46 €
In stock
incl. material surcharge: 0,14 €
The material surcharge is already included in the price.
Weight: 0,073 kg
If this article is new in our product range, it may happen that details concerning weight are as yet not listed.
If you do need weight details, please contact our Sales Department!
Phone +49 7723 6507 - 0
RoHS: Yes
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances).
